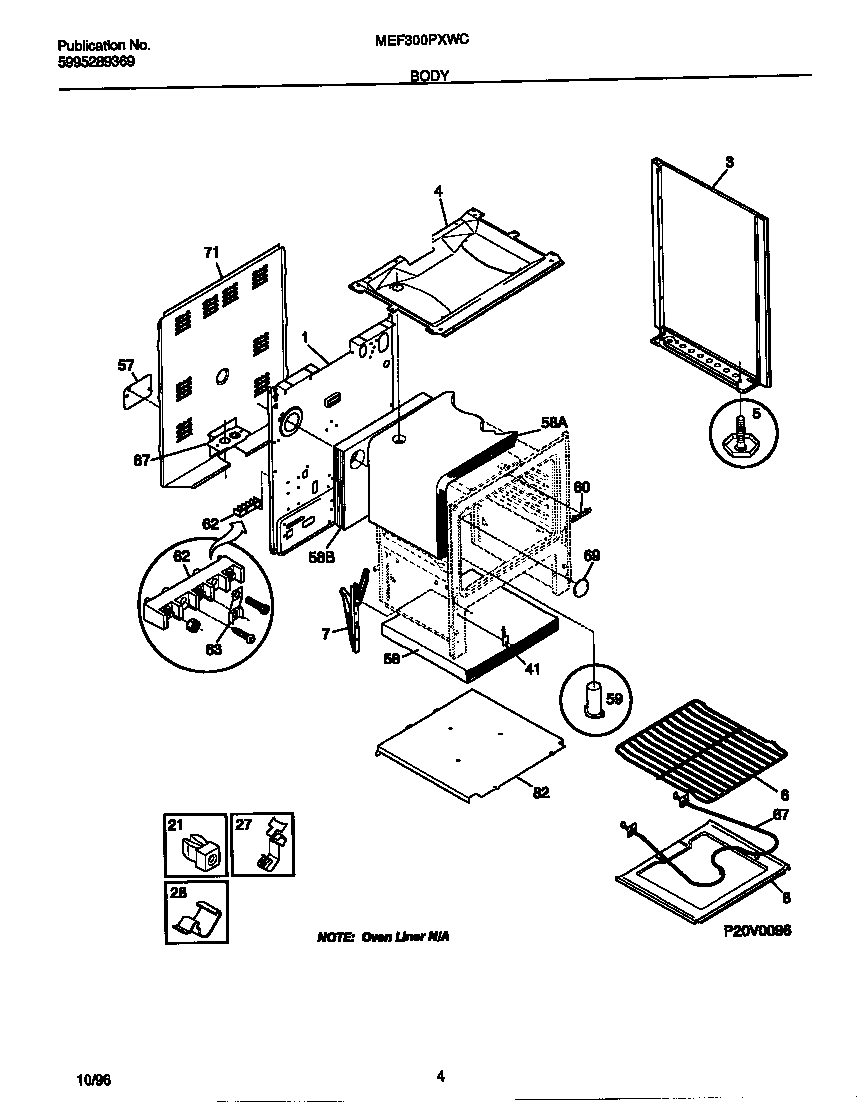

MEF300PXWC 03 – BODY

MEF300PXWC 03 – BODY

Written by

in

MEF300PXWC 03 – BODY

Products

PositionProduct
*86443Screw,cup pt ,8-18 x 0.375 ,chrome
*864423203550 Frigidaire Oven Plug
*86445316205500 Frigidaire Oven Nut
*86446COVER-IGNITOR
*86444WCI 316073400
1WCI 316080801
3WCI 316081028
3WCI 316081029
4WCI 5303271756
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
41WCI 3131570
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
67316075103 Frigidaire Oven Bake Element
693051218 Frigidaire Oven Plate
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
