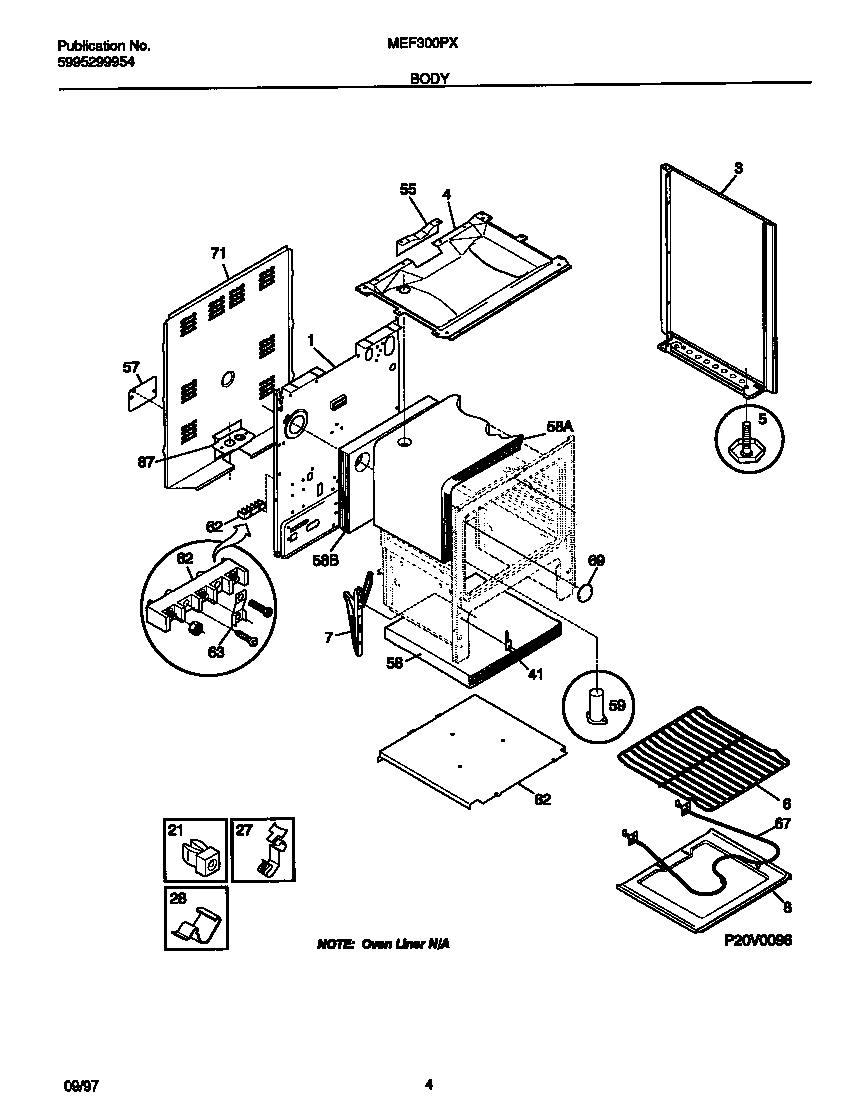

MEF300PXWE 03 – BODY

MEF300PXWE 03 – BODY

Written by

in

MEF300PXWE 03 – BODY

Products

PositionProduct
*80203Screw,cup pt ,8-18 x 0.375 ,chrome
*80204WCI 316073400
*802013131903 Frigidaire Door/Drawer Bumper
*80205316205500 Frigidaire Oven Nut
*802023203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081029
3WCI 316081028
4WCI 5303271756
5SCREW-LEVELING
5WCI 3934058
5316116000 Frigidaire Screw
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
41WCI 3131570
55COVER-IGNITOR
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
67316075103 Frigidaire Oven Bake Element
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
