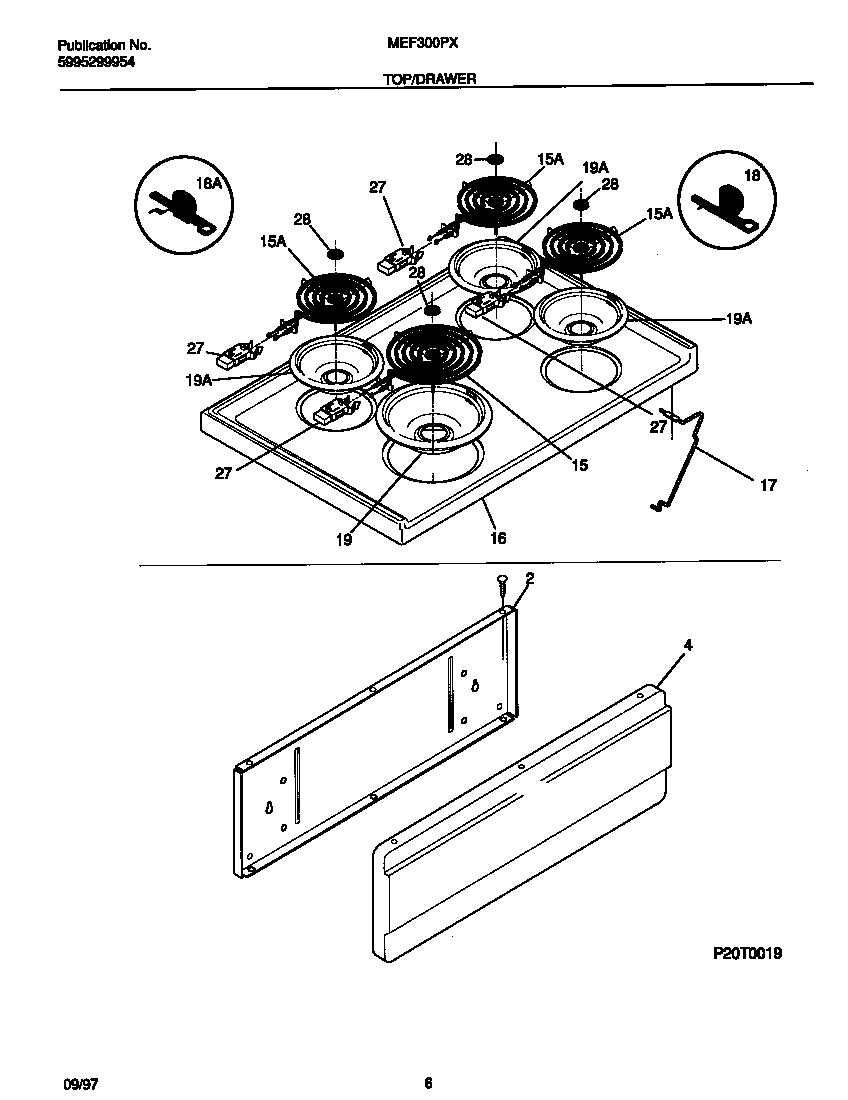

MEF300PXWE 04 – TOP/DRAWER

Products

PositionProduct
*80209WCI 316105700
*802063131903 Frigidaire Door/Drawer Bumper
*80210WCI 5303280311
*802115308014215 Frigidaire Oven Screw
*80208Screw,cup pt ,8-18 x 0.375 ,chrome
*80207316021105 Frigidaire Oven Screw
2SHIELD-PNL
4PNL – DRAWER (WHITE)
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3051379
17316089500 Frigidaire Oven Screw
17WCI 316066900
18BRACKET-HINGE,MAIN TOP RH
18BRACKET-HINGE,MAIN TOP LH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
