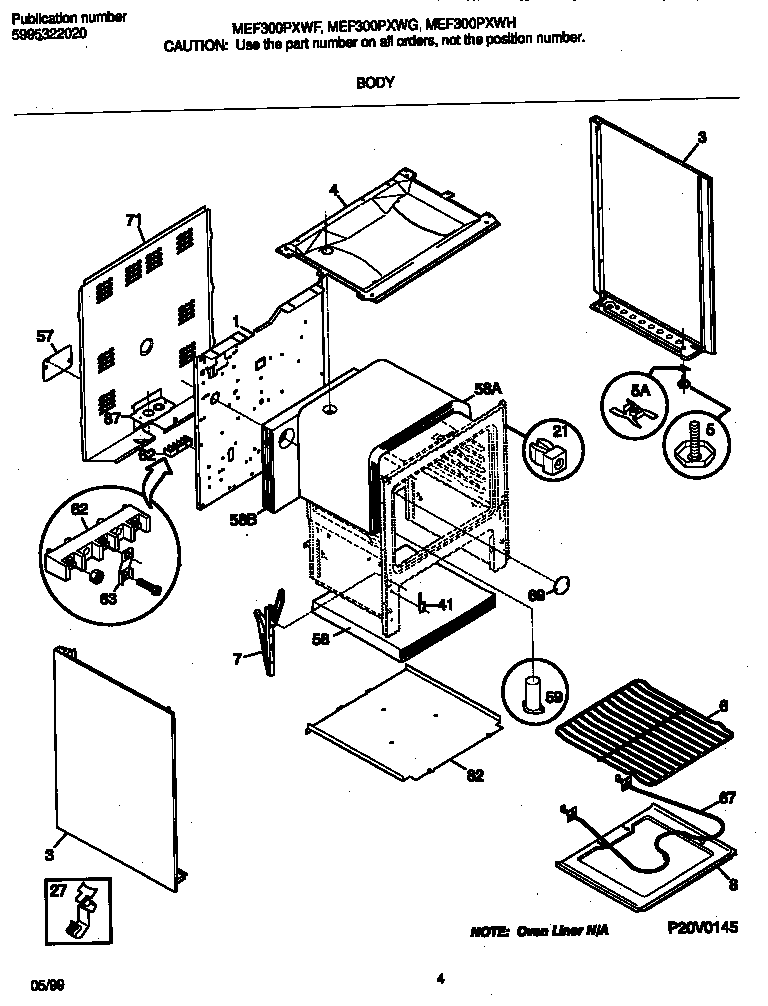

MEF300PXWG 03 – BODY

MEF300PXWG 03 – BODY

Written by

in

MEF300PXWG 03 – BODY

Products

PositionProduct
*24326Screw,cup pt ,8-18 x 0.375 ,chrome
*243295308014215 Frigidaire Oven Screw
*243253203550 Frigidaire Oven Plug
*24328316205500 Frigidaire Oven Nut
*24324WCI 3051367
*24327WCI 316073400
1WCI 316080804
3AWCI 316081034
3BWCI 316081035
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
34COVER-IGNITOR
41WCI 3131570
57WCI 316081101
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
67316075103 Frigidaire Oven Bake Element
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
