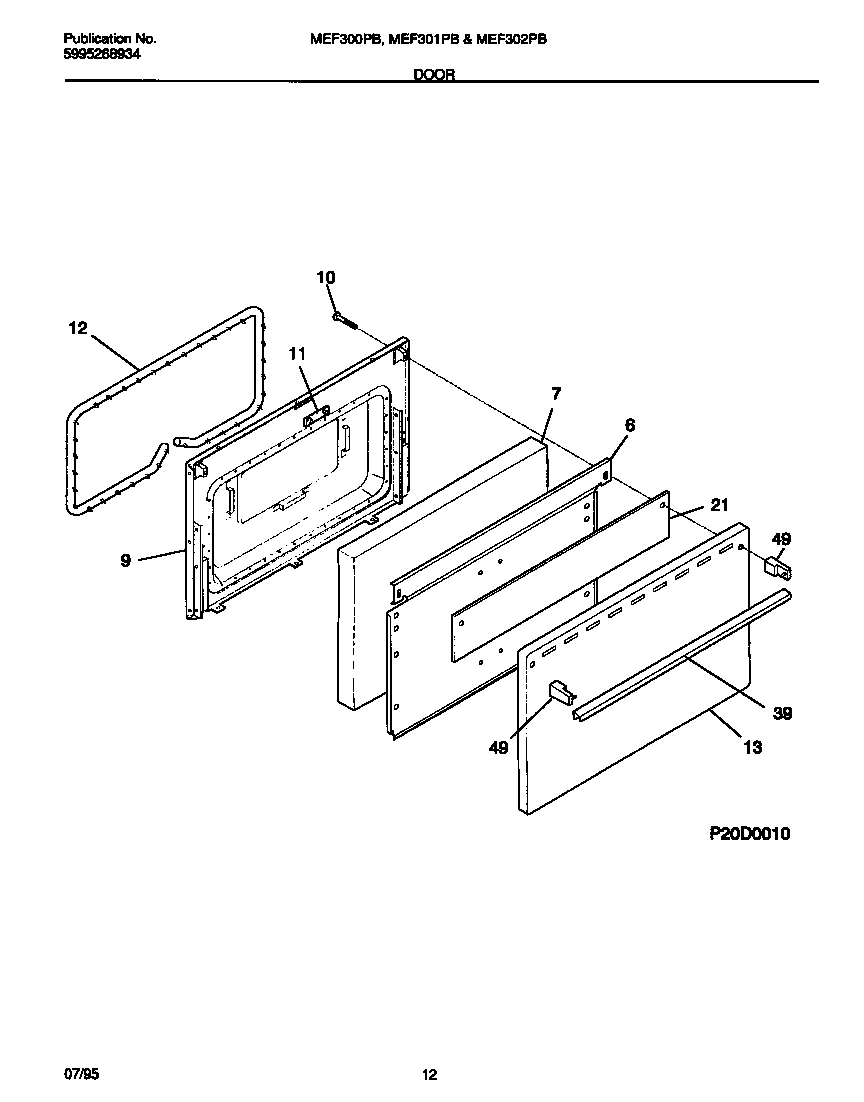

MEF301PBDE 07 – DOOR

MEF301PBDE 07 – DOOR

Written by

in

MEF301PBDE 07 – DOOR

Products

PositionProduct
*38851SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*388525303300265 Frigidaire Oven Screw
*388555303285179 Frigidaire Oven Door Screw
*388535303271648 Frigidaire Oven Screw
*38850WCI 316071600
*38854WCI 5303280311
6WCI 5303209317
7INSULATION-OVEN DR
9WCI 316066602
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
13Panel,oven door ,almond
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
