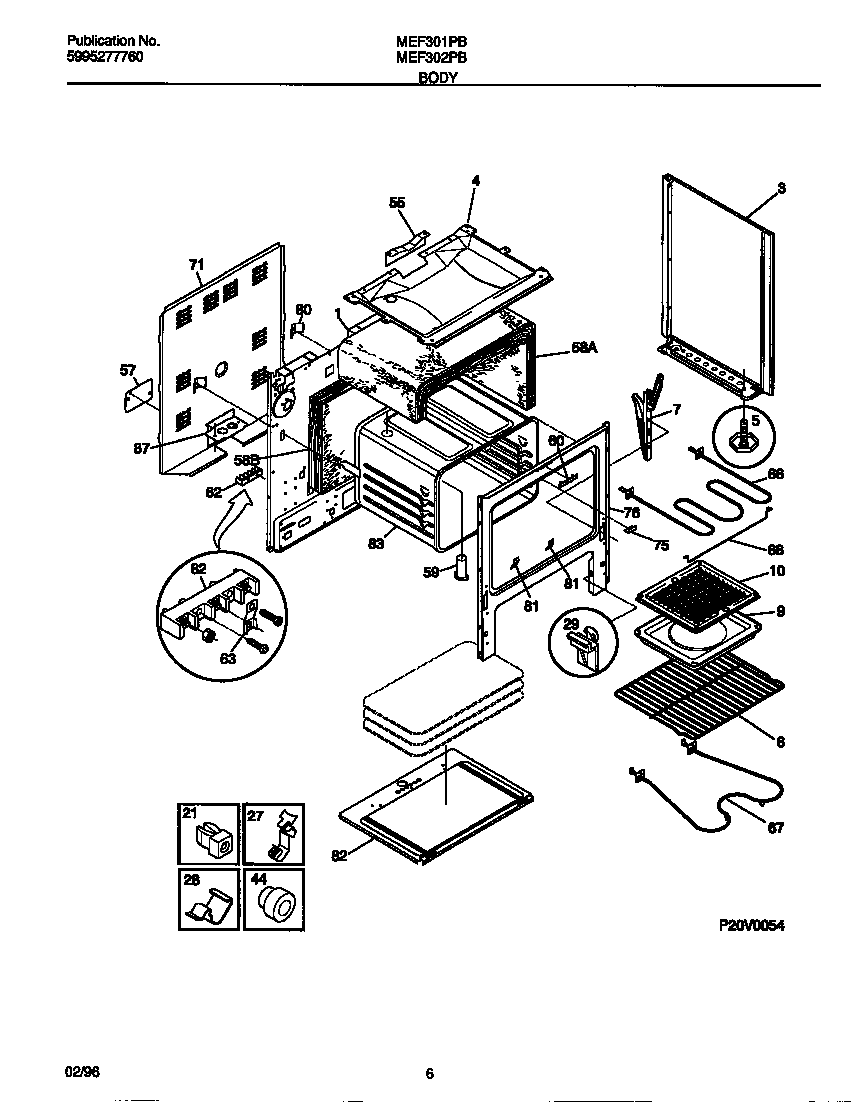

MEF301PBDG 04 – BODY

Products

PositionProduct
*90526316205500 Frigidaire Oven Nut
*90525WCI 316077000
*90527WCI 5303281584
*90524WCI 316073400
1AWCI 316029406
1BWCI 316029410
3WCI 316081006
3WCI 316081007
4WCI 5303271756
5BWCI 3934058
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
9PAN-BROILER
10WCI 5303131356
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57WCI 316081101
58WCI 316047702
58WCI 5303274967
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 3205756
71WCI 316015805
75WCI 3202082
76WCI 316066702
80WCI 3016281
81WCI 316072700
82WCI 316072600
83WCI 316073001
87WCI 316081201
