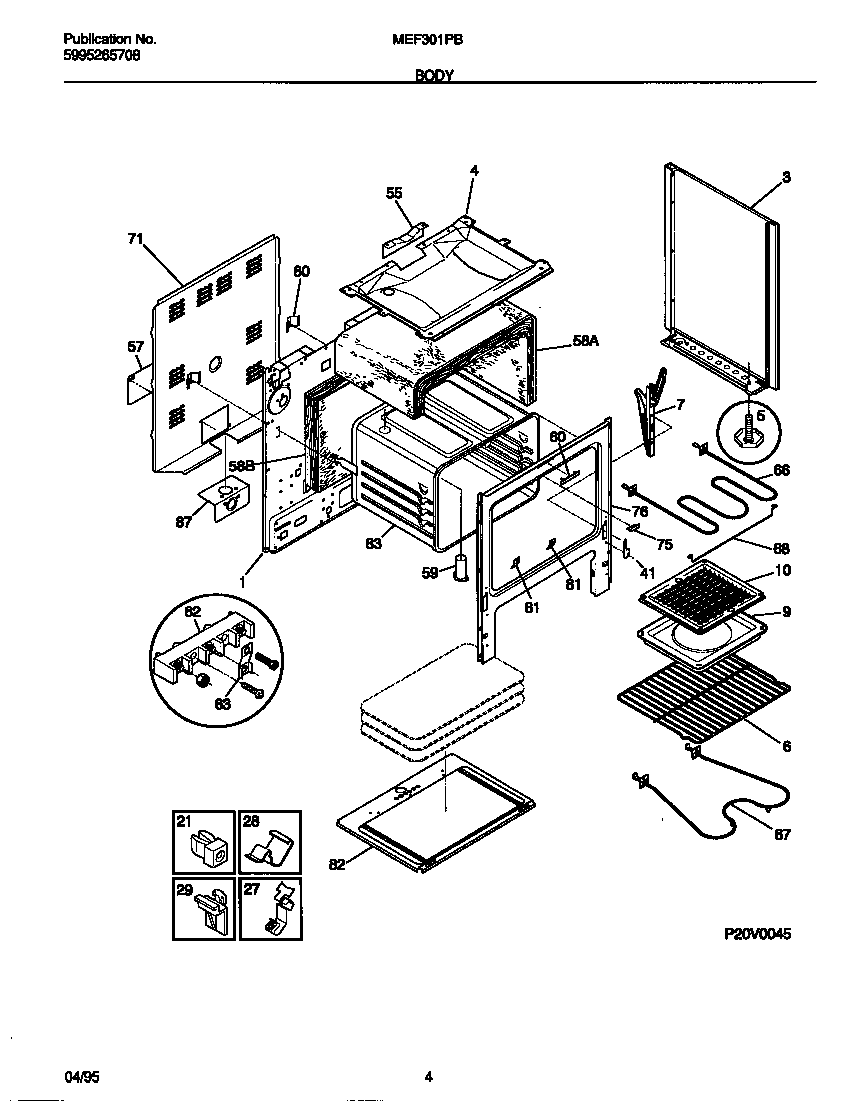

MEF301PBWC 03 – BODY

Products

Position	Product
*28202	WCI 316073400
*28205	WCI 5303281584
*28204	316205500 Frigidaire Oven Nut
*28203	WCI 316077000
1	WCI 316029406
3	WCI 316081005
3	WCI 316081004
4	WCI 5303271756
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C	316116000 Frigidaire Screw
5B	WCI 3934058
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	HINGE-OVEN DOOR,ASSEMBLY
9	PAN-BROILER
10	WCI 5303131356
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	WCI 3051367
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
44	3131903 Frigidaire Door/Drawer Bumper
55	COVER-FLUE
57	COVER-ACCESS
58	WCI 5303274967
58	WCI 316047702
59	WCI 316073601
60	COVER-OVEN FRONT
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	PLATE-GROUND STRAP
66	5303051516 Frigidaire Broil Element
67	5303051519 Frigidaire Oven 2600W Bake Element
68	WCI 3205756
71	SHIELD, REAR WALL, REAR WALL
75	WCI 3202082
76	WCI 316066702
80	WCI 3016281
81	WCI 316072700
82	WCI 316072600
83	WCI 316073001
87	WCI 5303206618
