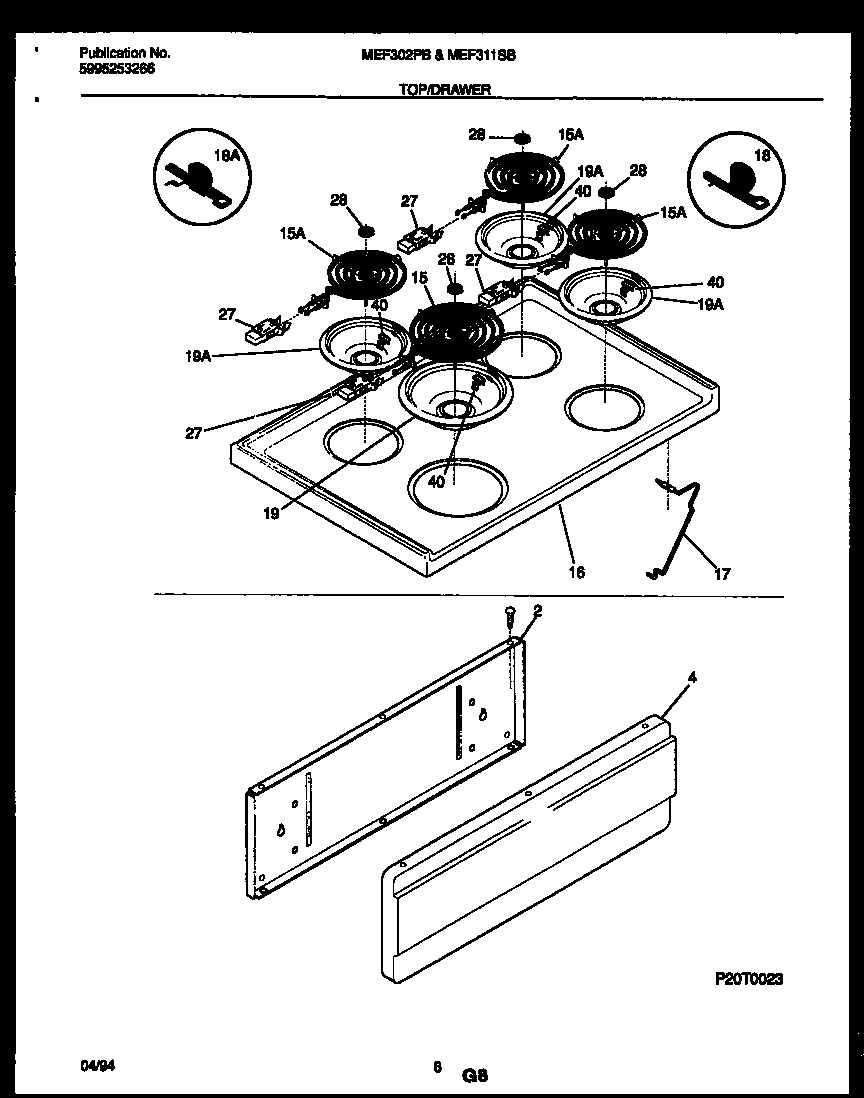

MEF302PBDA 04 – COOKTOP AND DRAWER PARTS

MEF302PBDA 04 – COOKTOP AND DRAWER PARTS

Written by

in

MEF302PBDA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PNL – DRAWER (ALMD)
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051380
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
40316058601 Frigidaire Oven Clip
