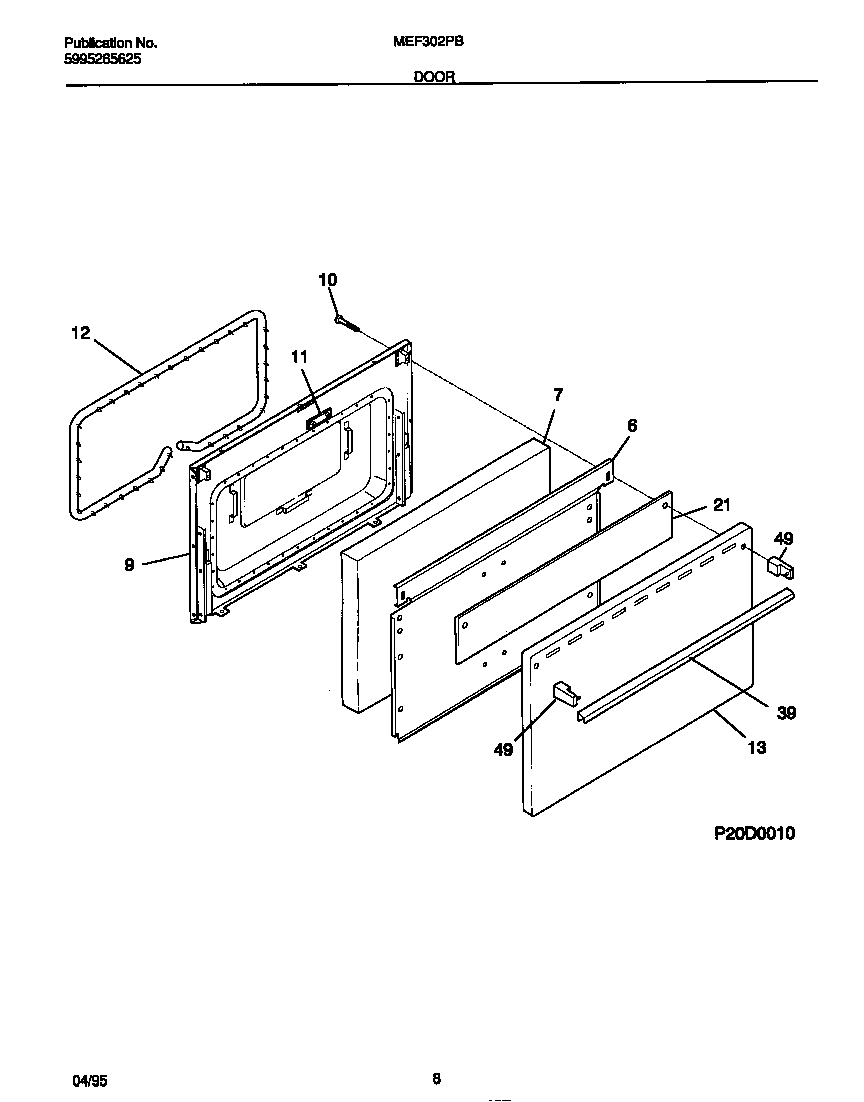

MEF302PBDC 05 – DOOR

MEF302PBDC 05 – DOOR

Written by

in

MEF302PBDC 05 – DOOR

Products

PositionProduct
*44128SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*441295303300265 Frigidaire Oven Screw
*441325303285179 Frigidaire Oven Door Screw
*441305303271648 Frigidaire Oven Screw
*44127WCI 316071600
*44131WCI 5303280311
6WCI 5303209317
7AWCI 316076401
7BINSULATION-OVEN DR
9WCI 316066602
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
13Panel,oven door ,almond
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
