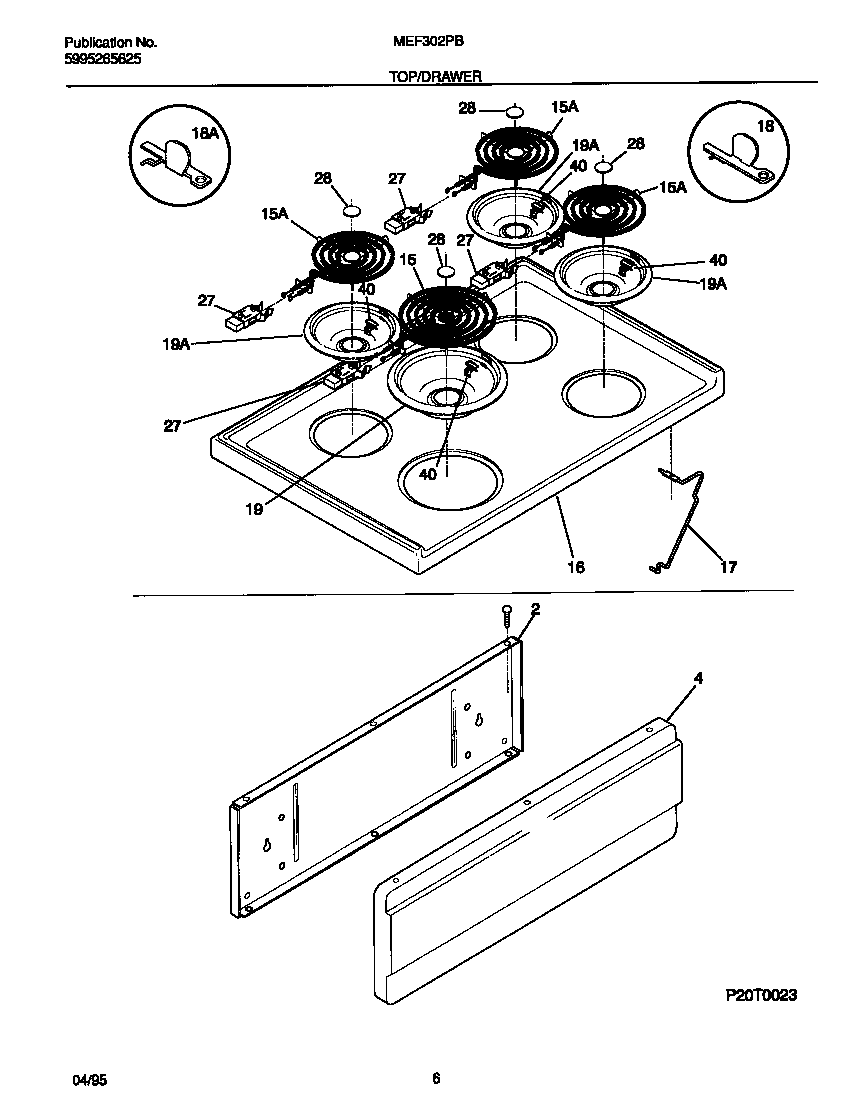

MEF302PBWC 04 – TOP/DRAWER

MEF302PBWC 04 – TOP/DRAWER

Written by

in

MEF302PBWC 04 – TOP/DRAWER

Products

PositionProduct
*44126WCI 5303281584
2SHIELD-PNL
4PNL – DRAWER (WHITE)
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051379
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
40316058601 Frigidaire Oven Clip
