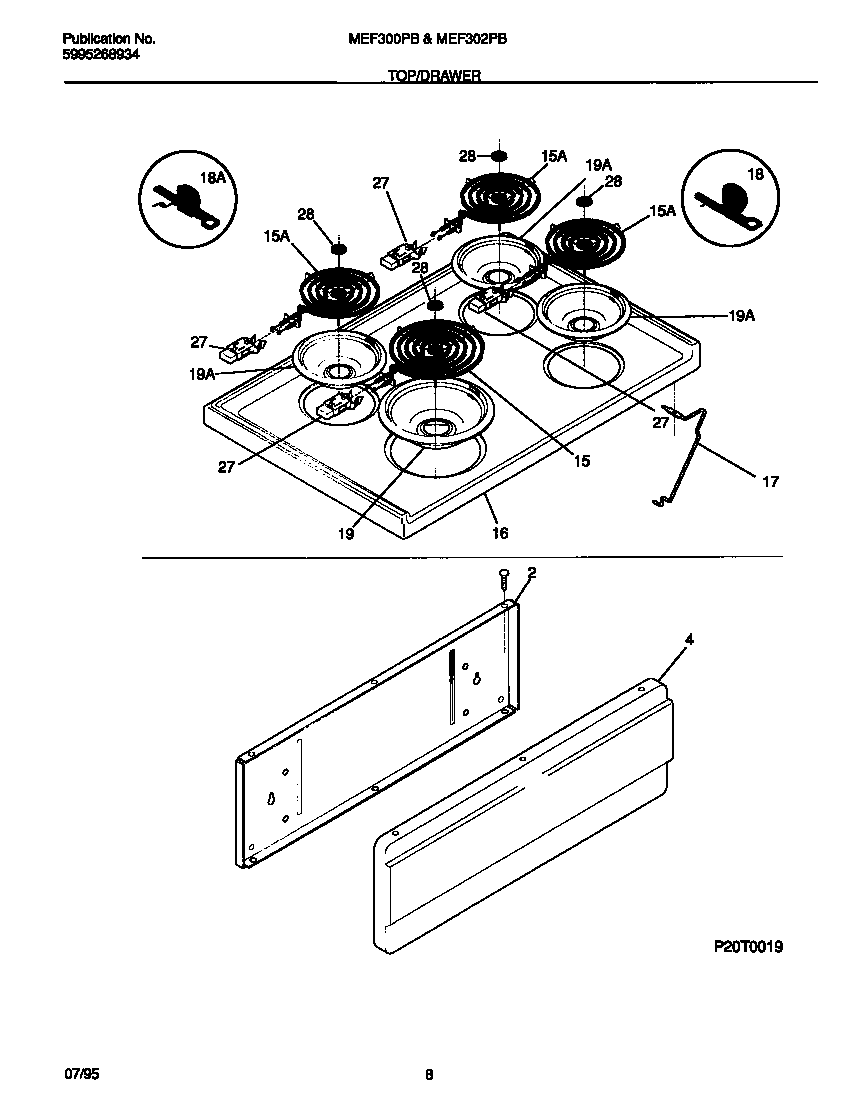

MEF302PBWE 05 – TOP/DRAWER

MEF302PBWE 05 – TOP/DRAWER

Written by

in

MEF302PBWE 05 – TOP/DRAWER

Products

PositionProduct
*38848WCI 5303281584
2SHIELD-PNL
4PNL – DRAWER (WHITE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051379
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
