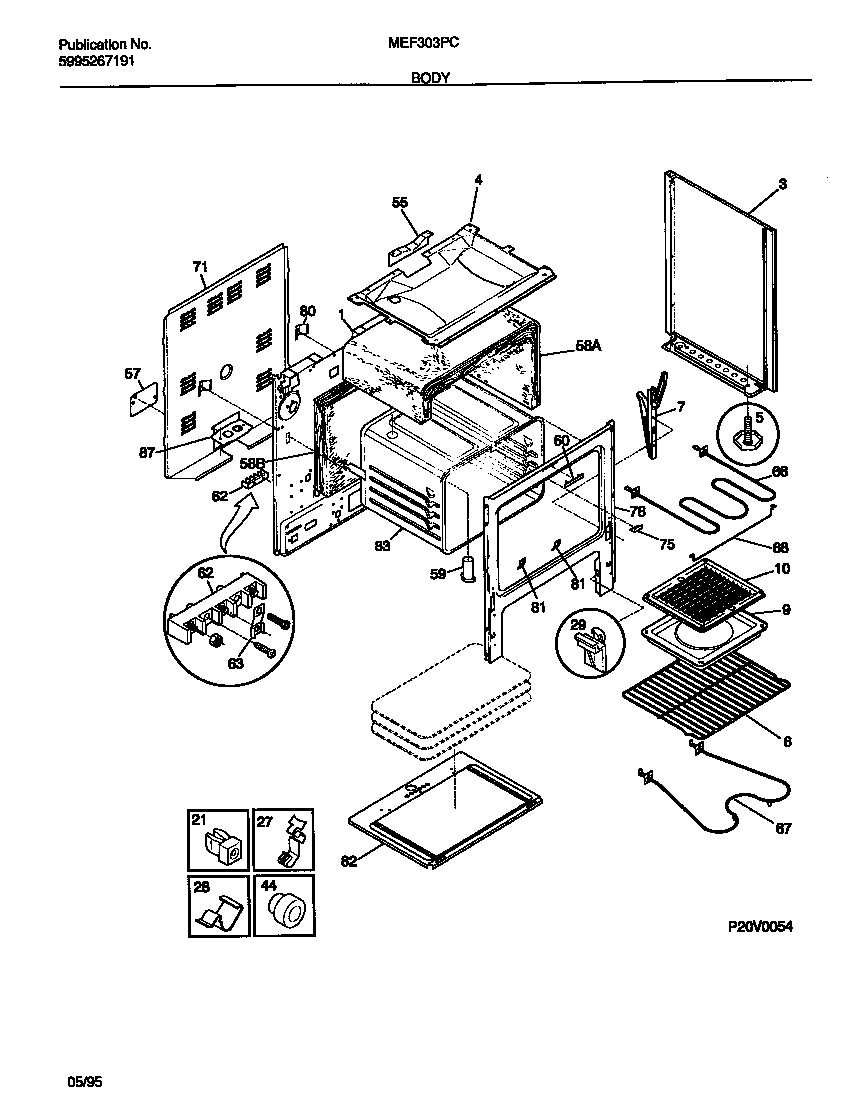

MEF303PCDA 03 – BODY

Products

PositionProduct
*81684316205500 Frigidaire Oven Nut
*81683WCI 316077000
*81685WCI 5303281584
*81682WCI 316073400
1AWCI 316029406
1BWCI 316029410
3WCI 316081007
3WCI 316081006
4WCI 5303271756
5ASCREW-LEVELING
5BWCI 3934058
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
9PAN-BROILER
10WCI 5303131356
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58WCI 316047702
58WCI 5303274967
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 3205756
71SHIELD, REAR WALL, REAR WALL
75WCI 3202082
76WCI 316066702
80WCI 3016281
81WCI 316072700
82WCI 316072600
83WCI 316073001
87WCI 5303206618
