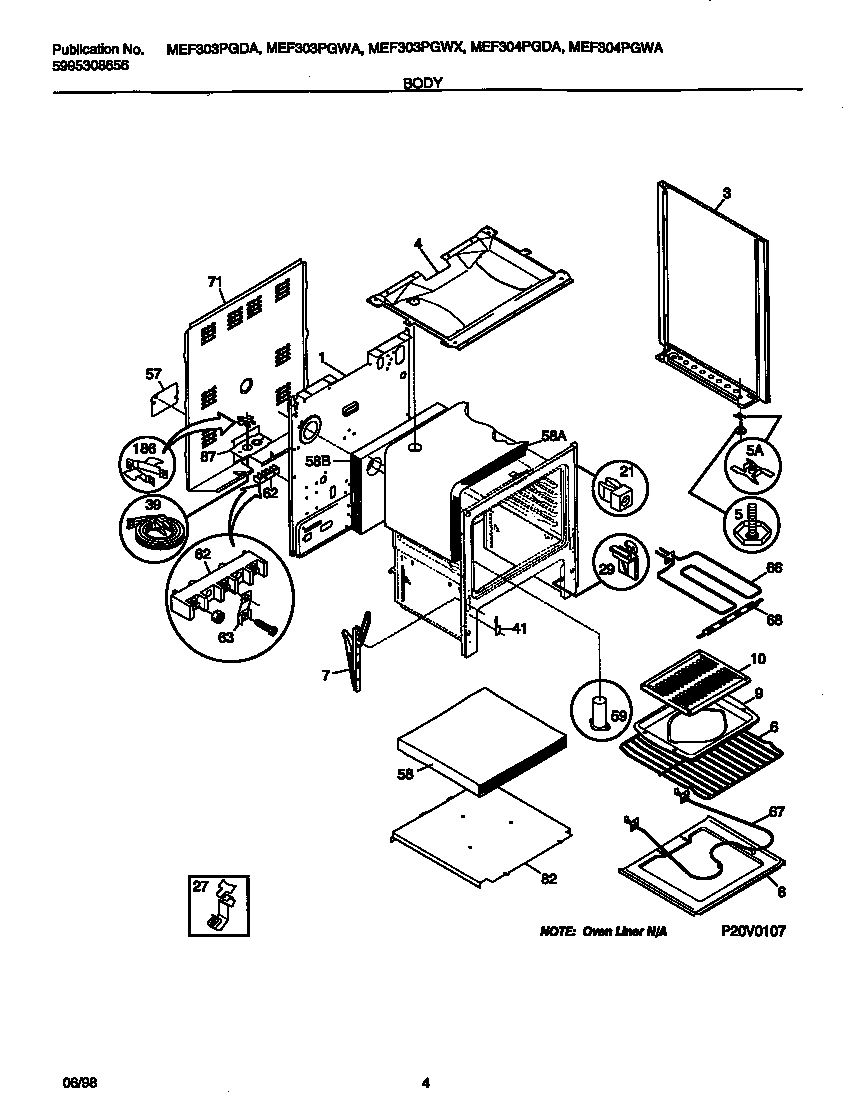

MEF303PGDA 03 – BODY

MEF303PGDA 03 – BODY

Written by

in

MEF303PGDA 03 – BODY

Products

PositionProduct
*41888316021105 Frigidaire Oven Screw
*41890WCI 316073400
*41893PANEL-BODYSIDE,ALMOND ,LH
*41885WCI 3051367
*41887Wiring Harness,main
*41895316116000 Frigidaire Screw
*41894WCI 3934058
*41891316205500 Frigidaire Oven Nut
*418863203550 Frigidaire Oven Plug
*41889Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3WCI 316081030
4WCI 5303271756
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3131570
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
