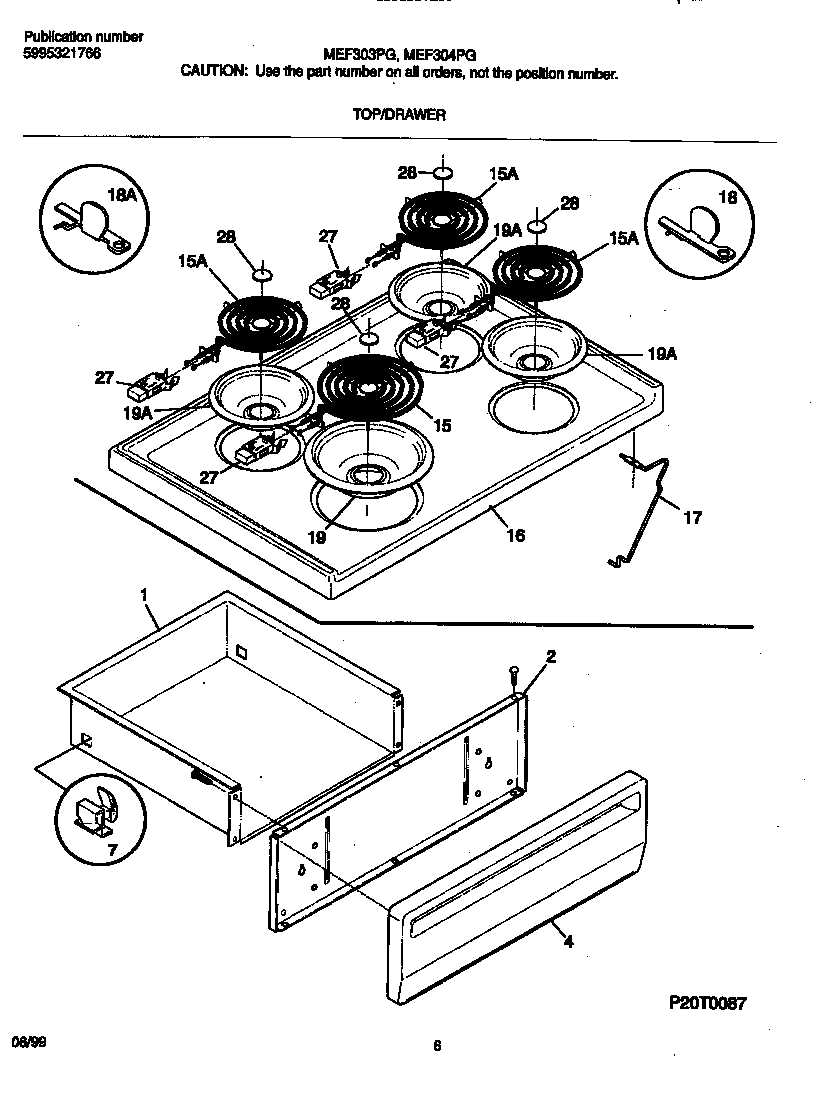

MEF303PGDY 04 – TOP/DRAWER

MEF303PGDY 04 – TOP/DRAWER

Written by

in

MEF303PGDY 04 – TOP/DRAWER

Products

PositionProduct
*34052316021105 Frigidaire Oven Screw
*34049WCI 3051367
*34054WCI 316073400
*34051Wiring Harness,main
*34055WCI 316114200
*34057316205500 Frigidaire Oven Nut
*340503203550 Frigidaire Oven Plug
*34053Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3BWCI 316081037
3AWCI 316081036
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3131570
57COVER-ACCESS
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015809
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
