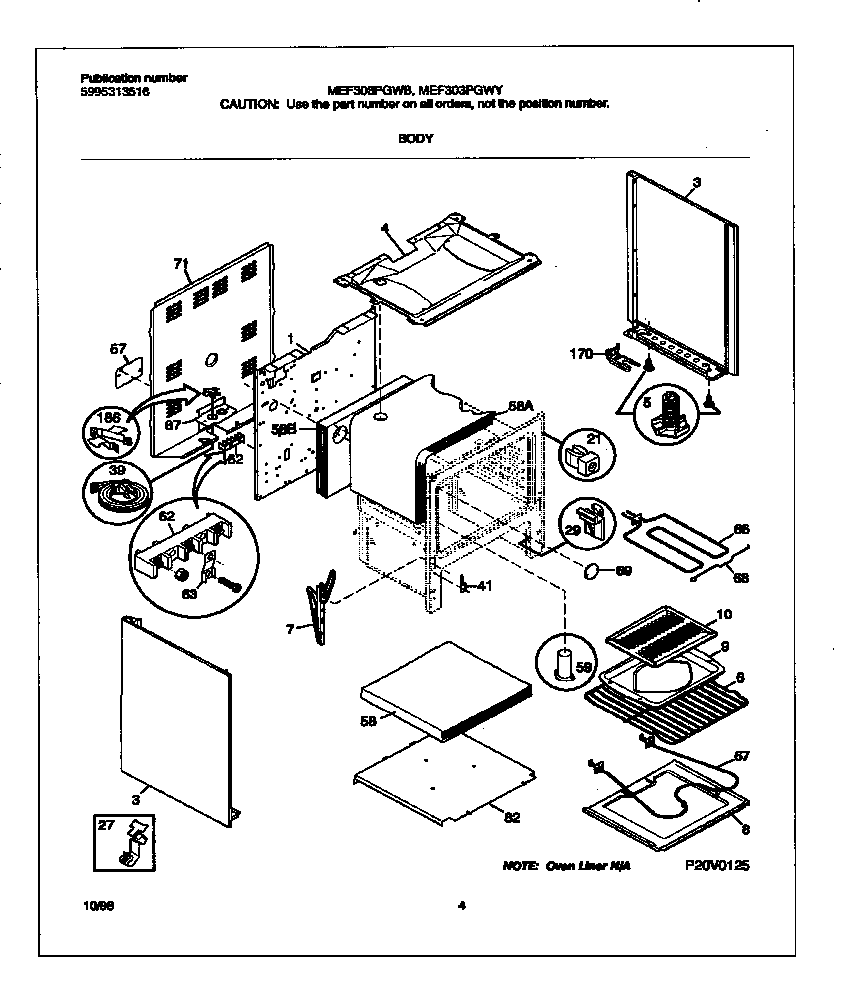

MEF303PGWY 03 – BODY

MEF303PGWY 03 – BODY

Written by

in

MEF303PGWY 03 – BODY

Products

PositionProduct
*87366Wiring Harness,main
*87368WCI 316073400
*87369WCI 316114200
*87370316205500 Frigidaire Oven Nut
*873653203550 Frigidaire Oven Plug
*87367Screw,cup pt ,8-18 x 0.375 ,chrome
*87364WCI 3051367
1WCI 316080804
3BWCI 316081035
3AWCI 316081034
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3131570
57COVER-ACCESS
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316047707 Frigidaire Insulation
59WCI 316073601
60316021105 Frigidaire Oven Screw
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015809
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
