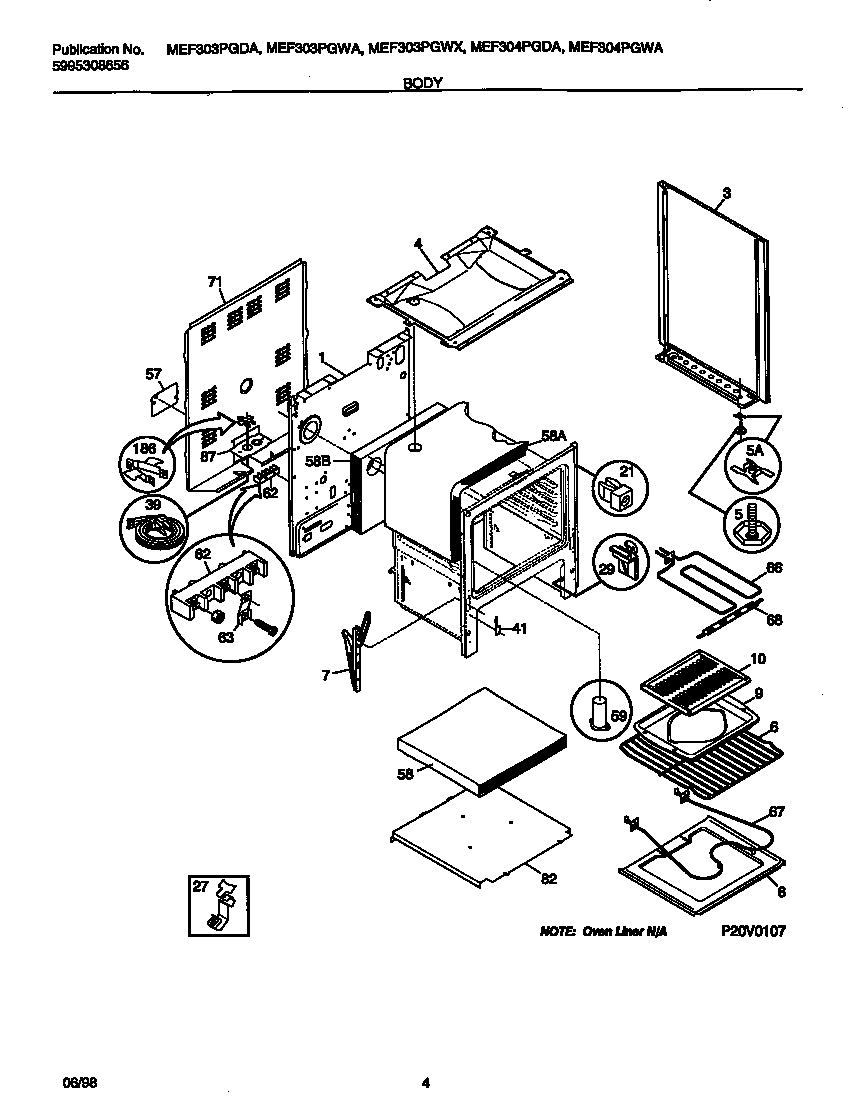

MEF304PGDA 03 – BODY

MEF304PGDA 03 – BODY

Written by

in

MEF304PGDA 03 – BODY

Products

PositionProduct
*41888316021105 Frigidaire Oven Screw
*41890WCI 316073400
*41893PANEL-BODYSIDE,ALMOND ,LH
*41885WCI 3051367
*41887Wiring Harness,main
*41895316116000 Frigidaire Screw
*41894WCI 3934058
*418863203550 Frigidaire Oven Plug
*41889Screw,cup pt ,8-18 x 0.375 ,chrome
*41891316205500 Frigidaire Oven Nut
1WCI 316080804
3WCI 316081030
4WCI 5303271756
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
