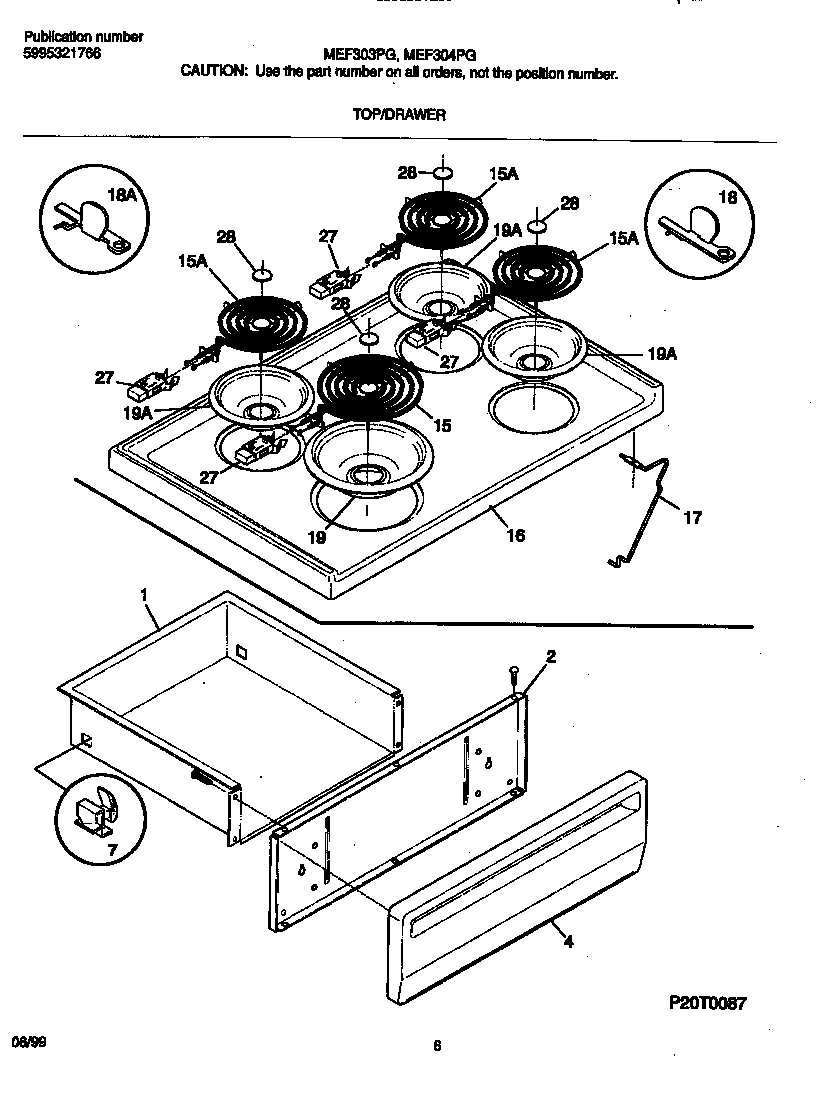

MEF304PGWX 04 – TOP/DRAWER

Products

Position	Product
*34052	316021105 Frigidaire Oven Screw
*34051	Wiring Harness,main
*34058	WCI 316081029
*34054	WCI 316073400
*34049	WCI 3051367
*34056	5308819106 Frigidaire 4' 3" 40 Amp Cord
*34060	316116000 Frigidaire Screw
*34059	WCI 3934058
*34057	316205500 Frigidaire Oven Nut
*34050	3203550 Frigidaire Oven Plug
*34053	Screw,cup pt ,8-18 x 0.375 ,chrome
1	WCI 316080804
3	WCI 316081028
4	WCI 5303271756
5	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	WCI 316007007
8	PANEL-OVEN BOTTOM
9	WCI 316073800
10	WCI 3205234
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
41	WCI 3131570
57	COVER-ACCESS
58	316403803 Frigidaire Insulation
59	WCI 316073601
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	PLATE=GROUND STRAP
66	5303051140 Frigidaire Broil Element
67	316075103 Frigidaire Oven Bake Element
68	316203400 Frigidaire Oven Support
69	3051218 Frigidaire Oven Plate
71	WCI 316015809
82	WCI 5303289913
87	316081200 Frigidaire Oven Bracket
