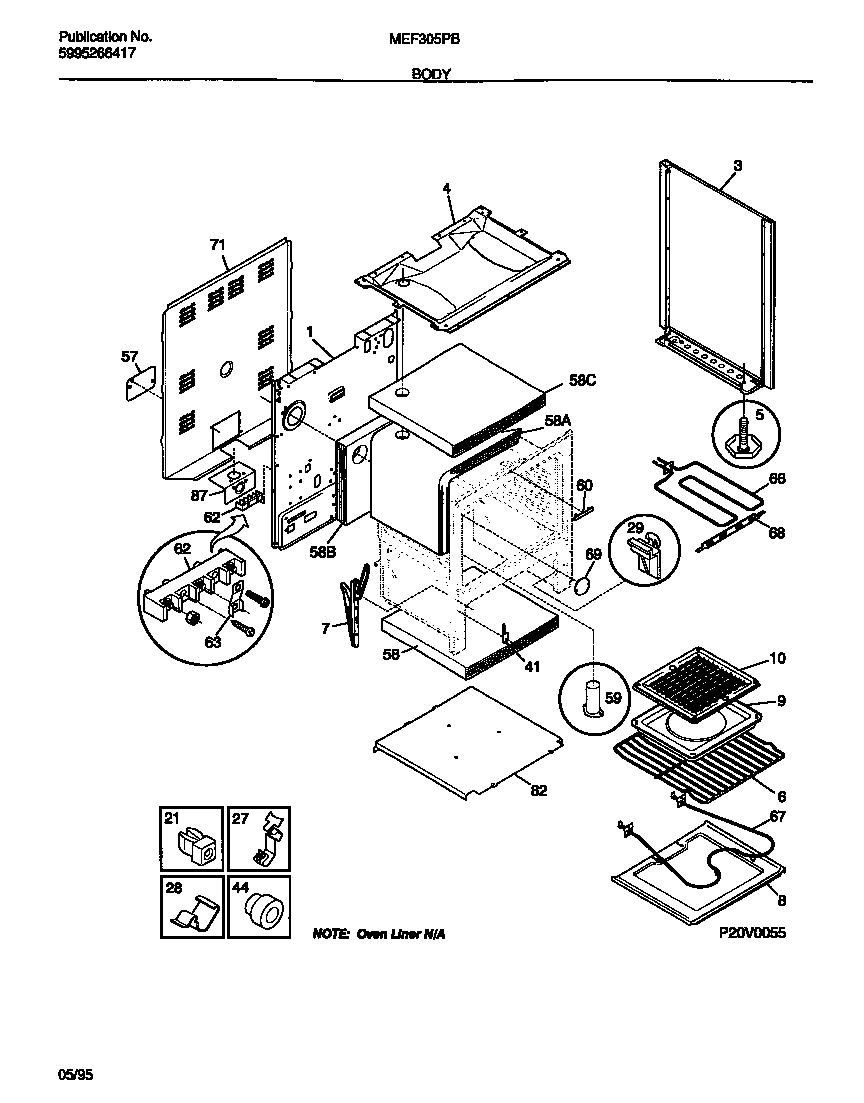

MEF305PBDA 03 – BODY

MEF305PBDA 03 – BODY

Written by

in

MEF305PBDA 03 – BODY

Products

PositionProduct
*73446WCI 5303281584
*73447WCI 316001174
*73445316205500 Frigidaire Oven Nut
*734443203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081007
3WCI 316081006
4WCI 5303271756
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BWCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57COVER-ACCESS
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71SHIELD, REAR WALL, REAR WALL
82SHIELD, OVEN BOTTOM
87WCI 5303206618
