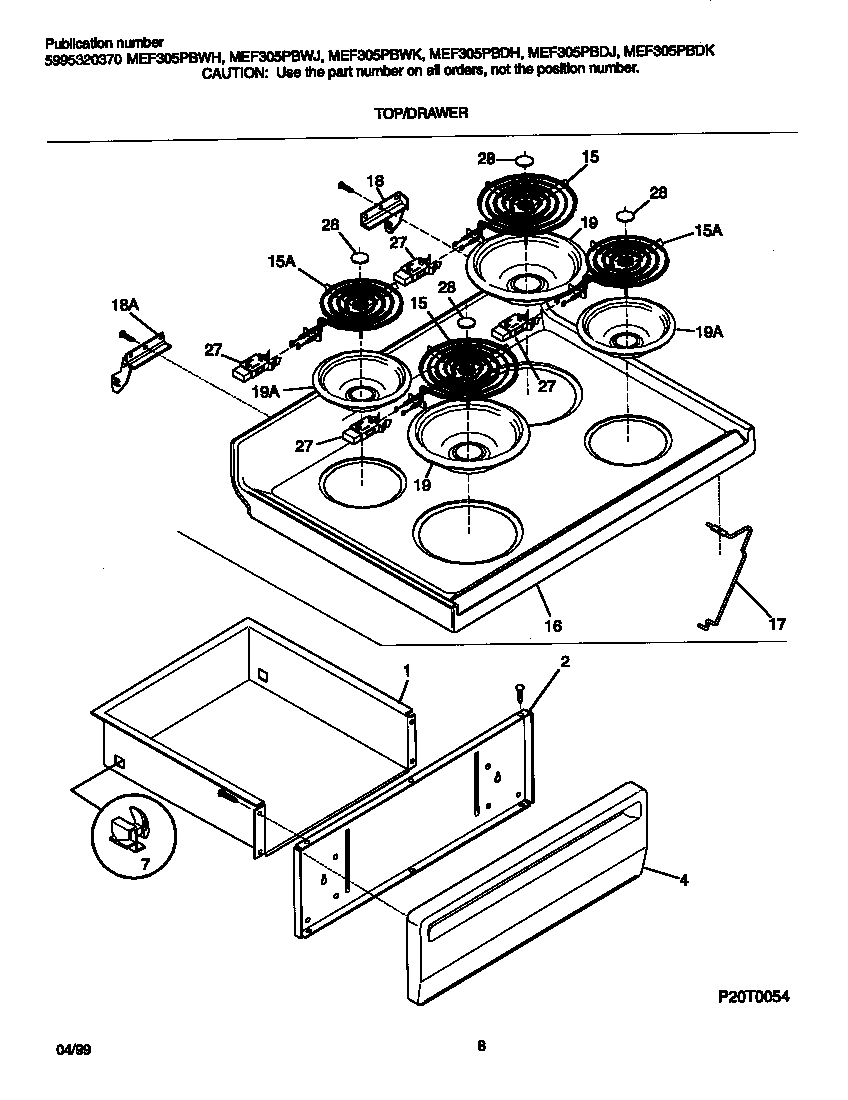

MEF305PBDJ 04 – TOP/DRAWER

Products

Position	Product
*48942	316580408 Frigidaire Oven Harness
*48935	Screw,cup pt ,8-18 x 0.375 ,chrome
*48936	316021109 Frigidaire Oven Screw
*48941	5308014215 Frigidaire Oven Screw
*48940	WCI 5303280311
*48943	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*48939	WCI 316089600
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
9	WCI 316073800
10	WCI 3205234
15	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	WCI 3013512
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18	BRACKET-HINGE,MAIN TOP LH
19	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
44	3131903 Frigidaire Door/Drawer Bumper
60	316021105 Frigidaire Oven Screw
