MEF305PBDL 02 – BACKGUARD

MEF305PBDL 02 – BACKGUARD

Written by

in

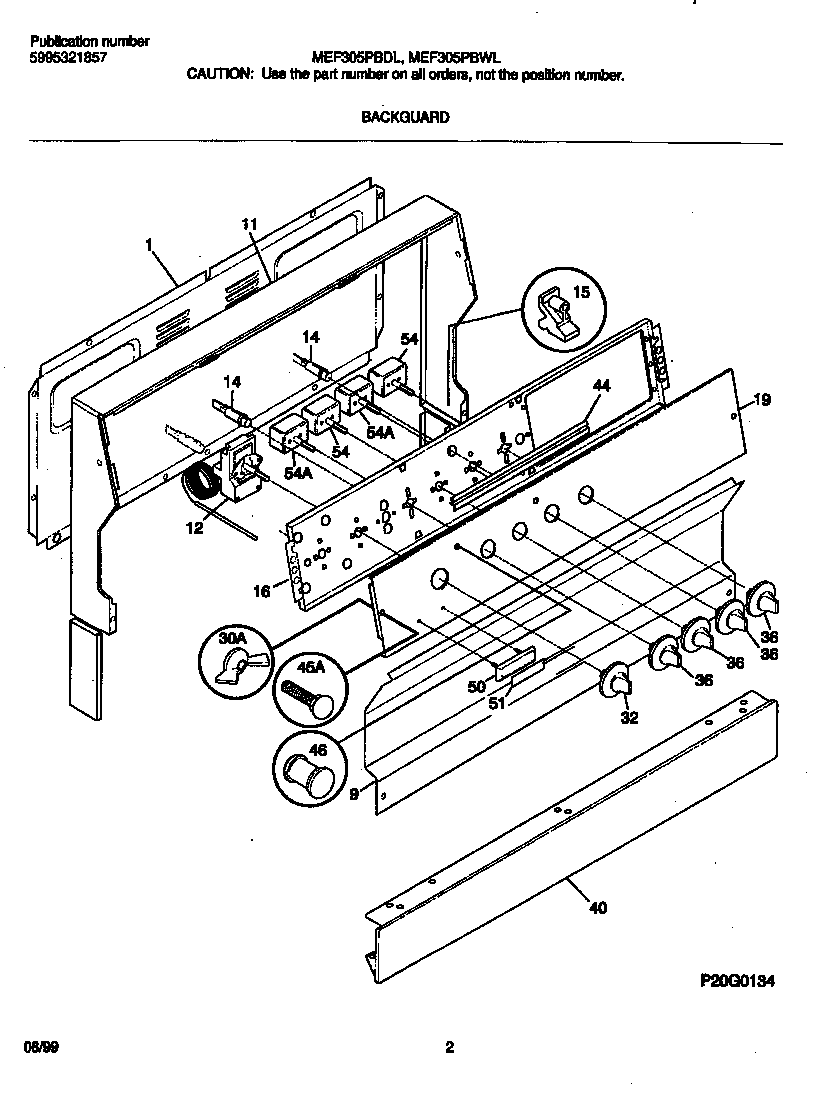

MEF305PBDL 02 – BACKGUARD

Products

PositionProduct
*77363316112500 Frigidaire Oven Template
*77360WCI 316002675
*77364WCI 5303272555
*77361Screw,cup pt ,8-18 x 0.375 ,chrome
*77362316021109 Frigidaire Oven Screw
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043602
11Trim,wrapper ,black
12ANameplate,Frigidaire ,black
12BWCI 5303212745
14LIGHT/LAMP, INDICATOR, BLUE, 250 V
15SUPPORT-BACKGUARD,(2)
19Panel,control ,black
30WCI 316064300
32WCI 316123301
36WCI 316123303
40WCI 316064009
44WCI 3131468
45WCI 316056902
46Lens,indicator light ,red
50WCI 316096900
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
