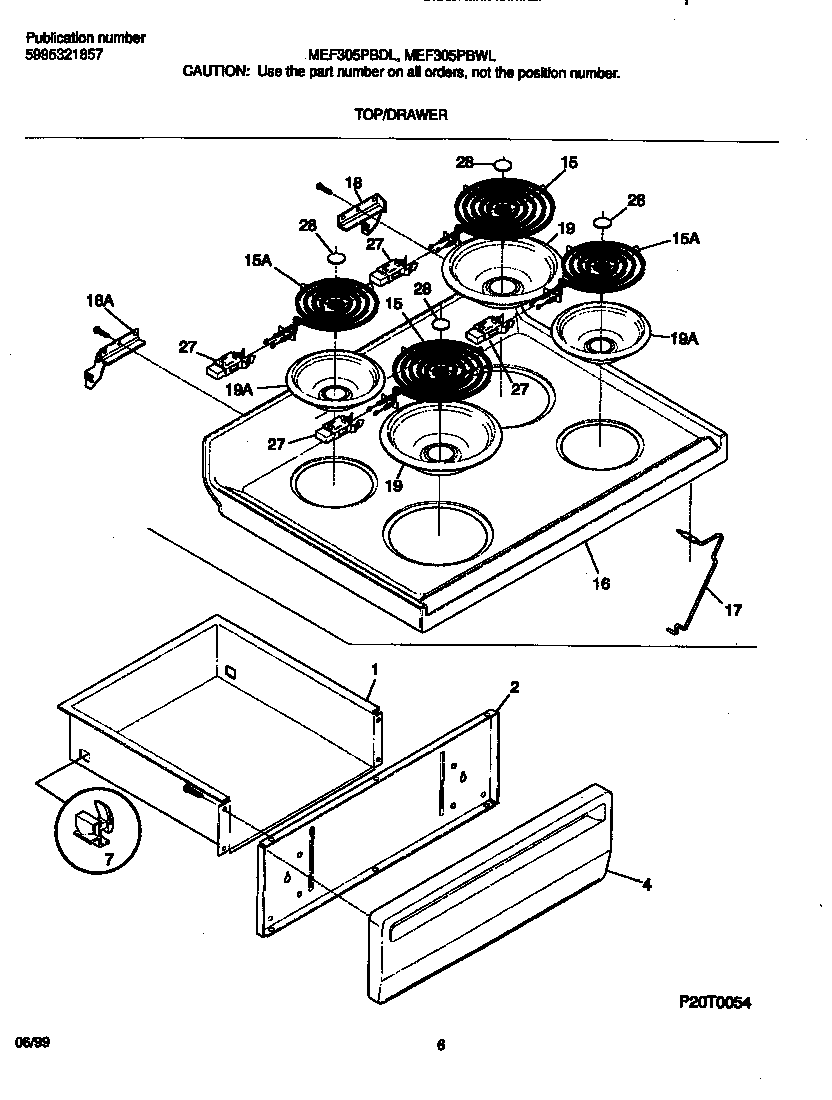

MEF305PBDL 04 – TOP/DRAWER

MEF305PBDL 04 – TOP/DRAWER

Written by

in

MEF305PBDL 04 – TOP/DRAWER

Products

PositionProduct
*77378316580408 Frigidaire Oven Harness
*77375WCI 316089600
*77379SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*77376WCI 5303280311
*773775308014215 Frigidaire Oven Screw
*77371Screw,cup pt ,8-18 x 0.375 ,chrome
*77372316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
