MEF305PBWB 04 – TOP/DRAWER
Written by
in

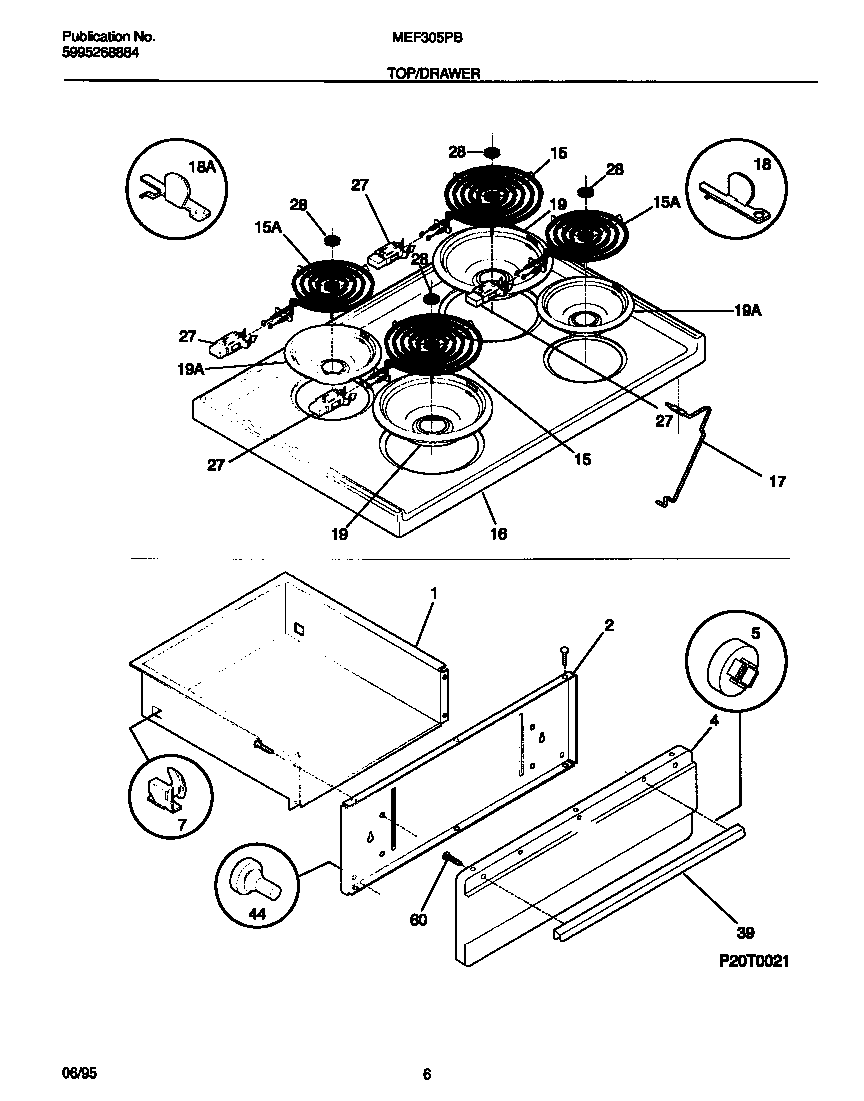

MEF305PBWB 04 – TOP/DRAWER
Products
Position
Product
*52850
WCI 5303281379
*52852
316580408 Frigidaire Oven Harness
*52851
WCI 5303281584
1
DRAWER-UTILITY
2
SHIELD-PNL
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4
PANEL-BROILER, WHITE
5
FSTNR, SPACER (2)
7
3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A
318372210 Frigidaire Oven Range 6" 1250W Surface Element
15
316442300 Frigidaire Oven 2100W Coil Element 8
16
WCI 5303013511
17
WCI 316066900
18
BRACKET-HINGE,MAIN TOP RH
18A
BRACKET-HINGE,MAIN TOP LH
19
316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A
L304430992 Frigidaire 6" Drip Bowl Chrome FM
27
5303935058 Frigidaire Oven Burner Receptacle Kit
28
MEDALLION, STAINLESS STEEL, SURF ELEM
39
HANDLE-DRAWER, BRUSHED CHROME
44
3131903 Frigidaire Door/Drawer Bumper
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
←
