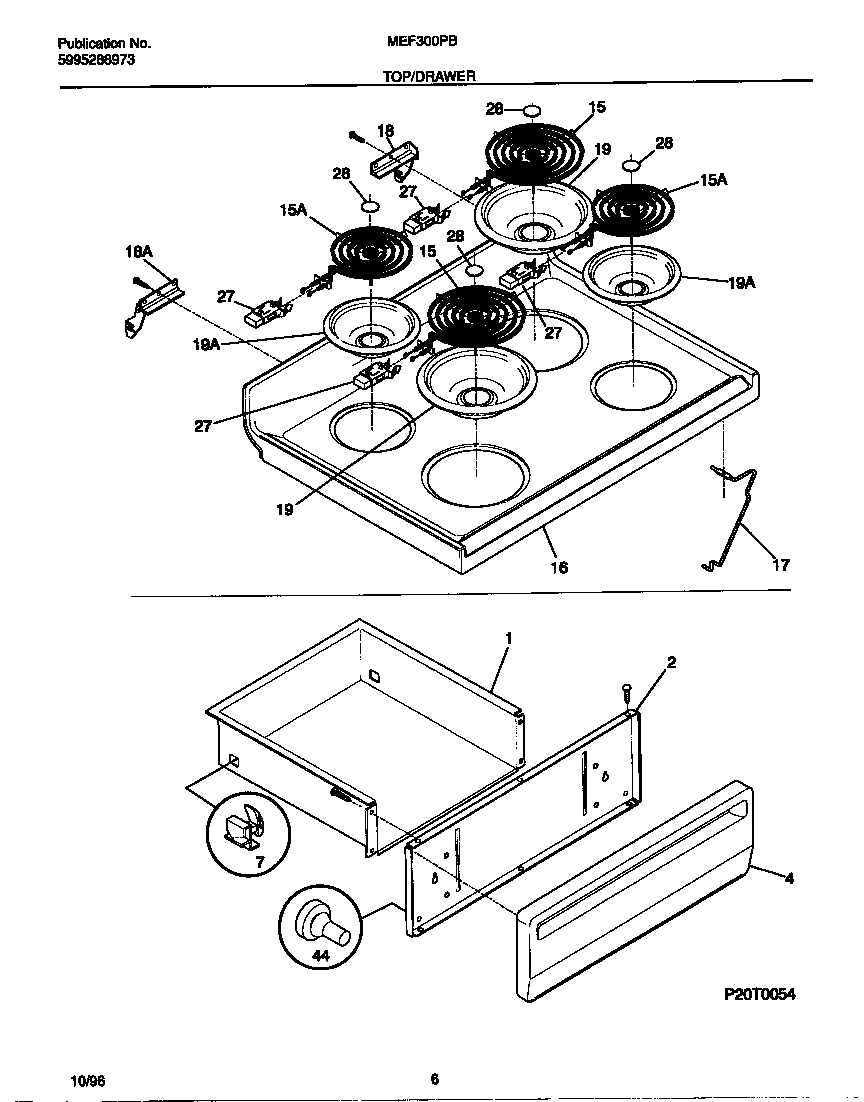

MEF305PBWE 04 – TOP/DRAWER

MEF305PBWE 04 – TOP/DRAWER

Written by

in

MEF305PBWE 04 – TOP/DRAWER

Products

PositionProduct
*70734316580408 Frigidaire Oven Harness
*70731Screw,cup pt ,8-18 x 0.375 ,chrome
*70733WCI 5303280311
*70732WCI 316089600
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 5303013511
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
