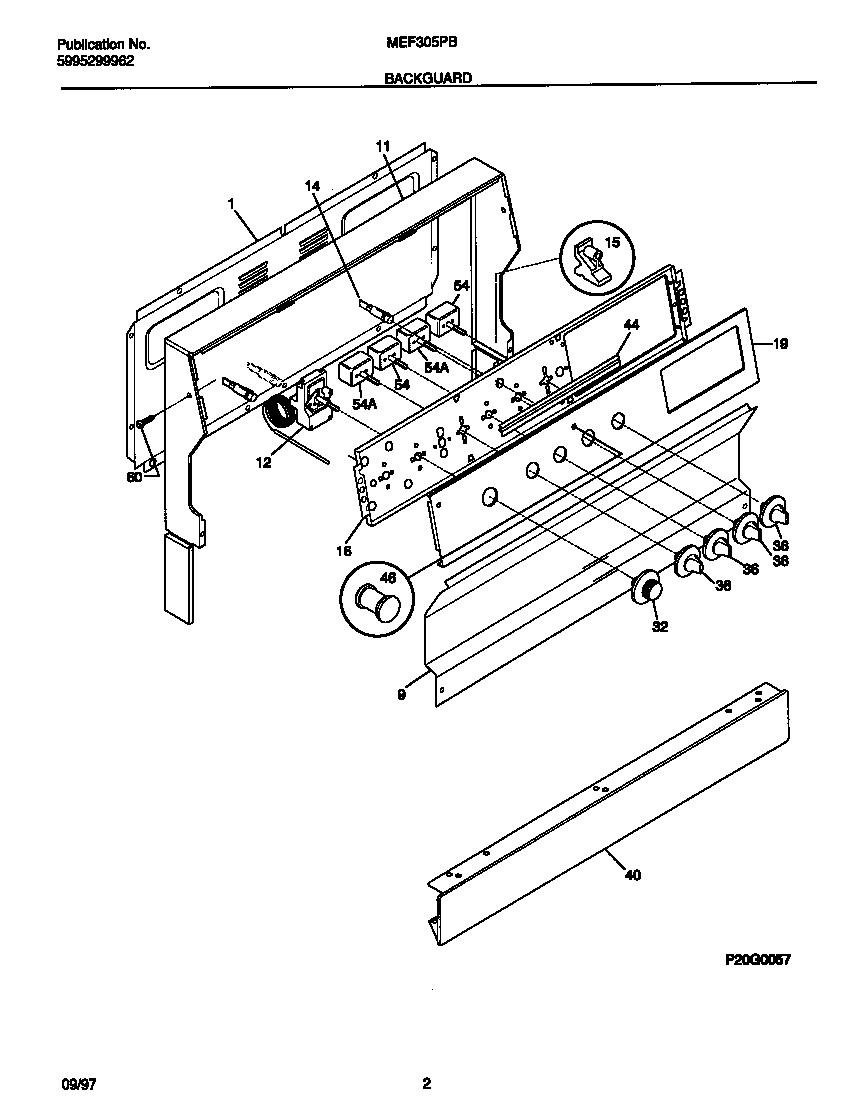

MEF305PBWG 02 – BACKGUARD

Products

PositionProduct
*33841WCI 316056902
*33844Screw,cup pt ,8-18 x 0.375 ,chrome
*33842WCI 316096900
*33843WCI 3204745
*33845WCI 5303272555
*33840WCI 316064300
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043601
11Trim,wrapper ,black
12WCI 5303212745
14LIGHT/LAMP, INDICATOR, BLUE, 250 V
15SUPPORT-BACKGUARD,(2)
16WCI 316042602
19Panel,control ,black
32WCI 316016803
36WCI 316016902
40WCI 316062329
44WCI 3131468
46Lens,indicator light ,red
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
