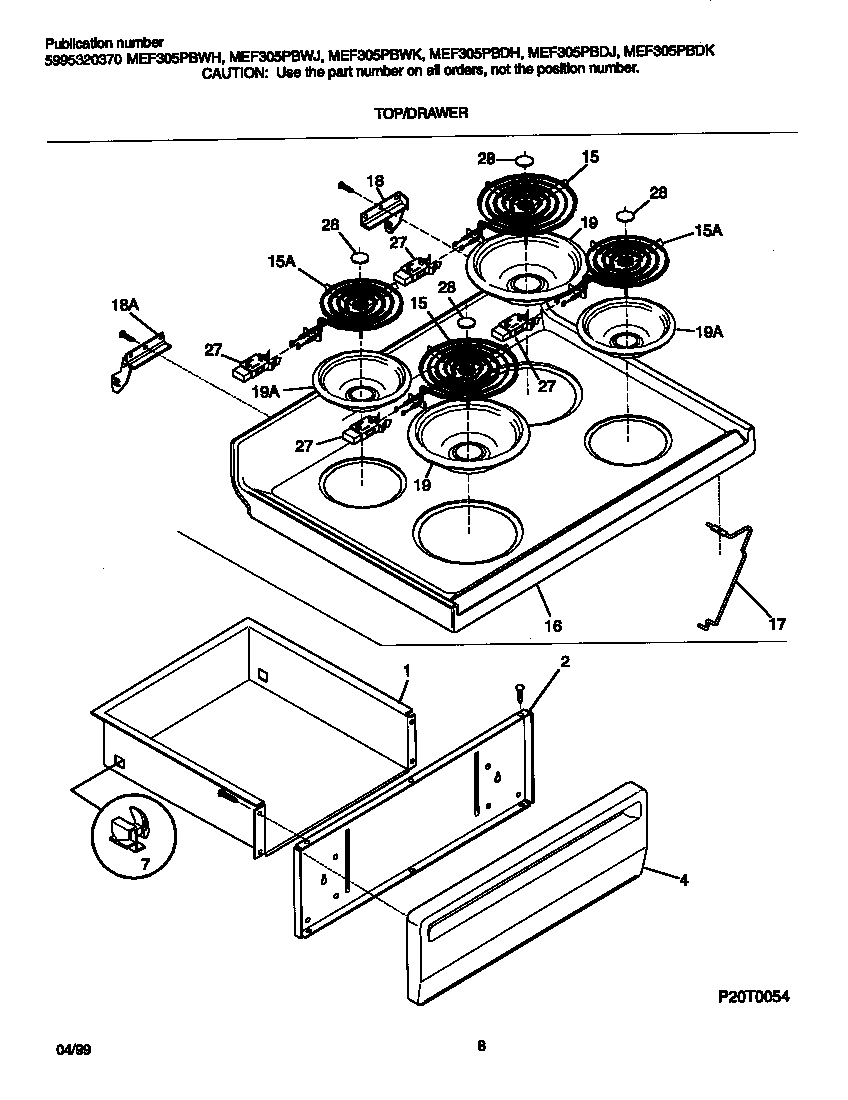

MEF305PBWJ 04 – TOP/DRAWER

MEF305PBWJ 04 – TOP/DRAWER

Written by

in

MEF305PBWJ 04 – TOP/DRAWER

Products

PositionProduct
*48942316580408 Frigidaire Oven Harness
*48936316021109 Frigidaire Oven Screw
*489415308014215 Frigidaire Oven Screw
*48935Screw,cup pt ,8-18 x 0.375 ,chrome
*48940WCI 5303280311
*48939WCI 316089600
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
9WCI 316073800
10WCI 3205234
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 5303013511
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
60316021105 Frigidaire Oven Screw
