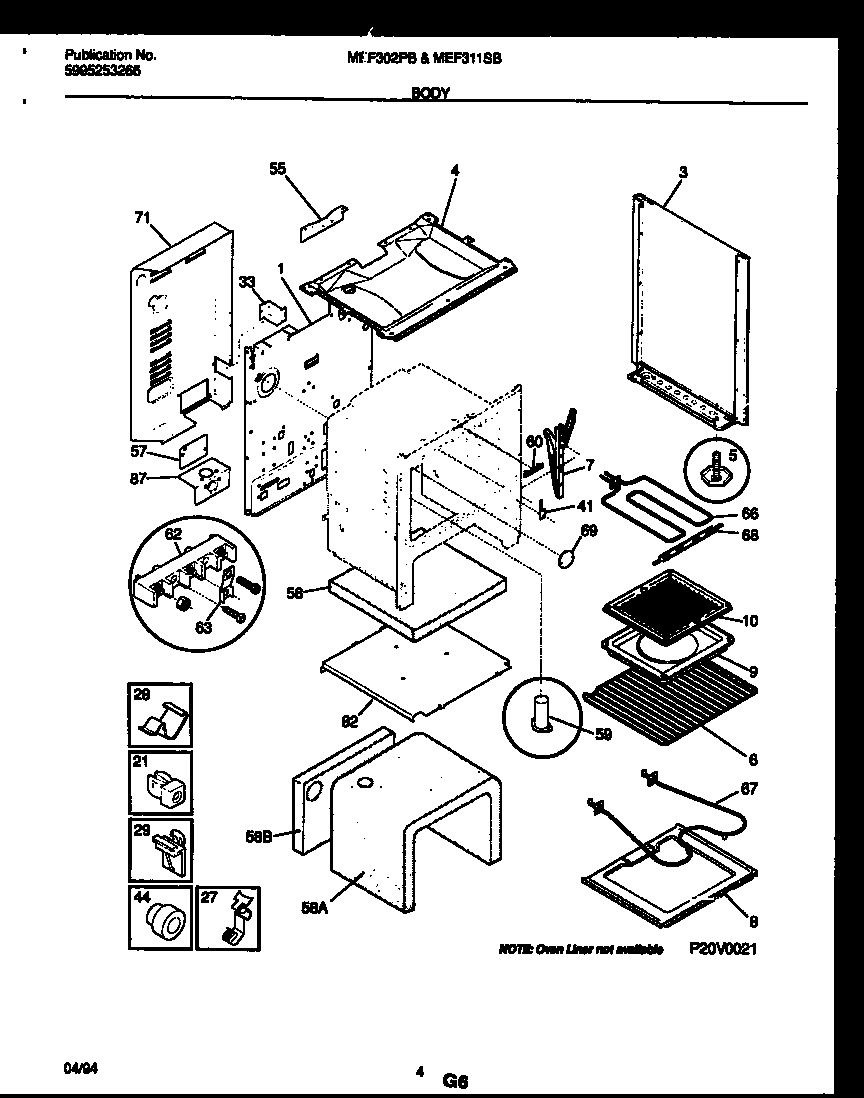

MEF311SBWA 03 – BODY PARTS

Products

PositionProduct
*96900WCI 3051387
*969003203550 Frigidaire Oven Plug
1WCI 3203082
3APNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4WCI 5303271756
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5AANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58316403803 Frigidaire Insulation
59WCI 5303283907
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71SHIELD-REAR WALL, LOWER
82SHIELD, OVEN BOTTOM
87WCI 5303206618
