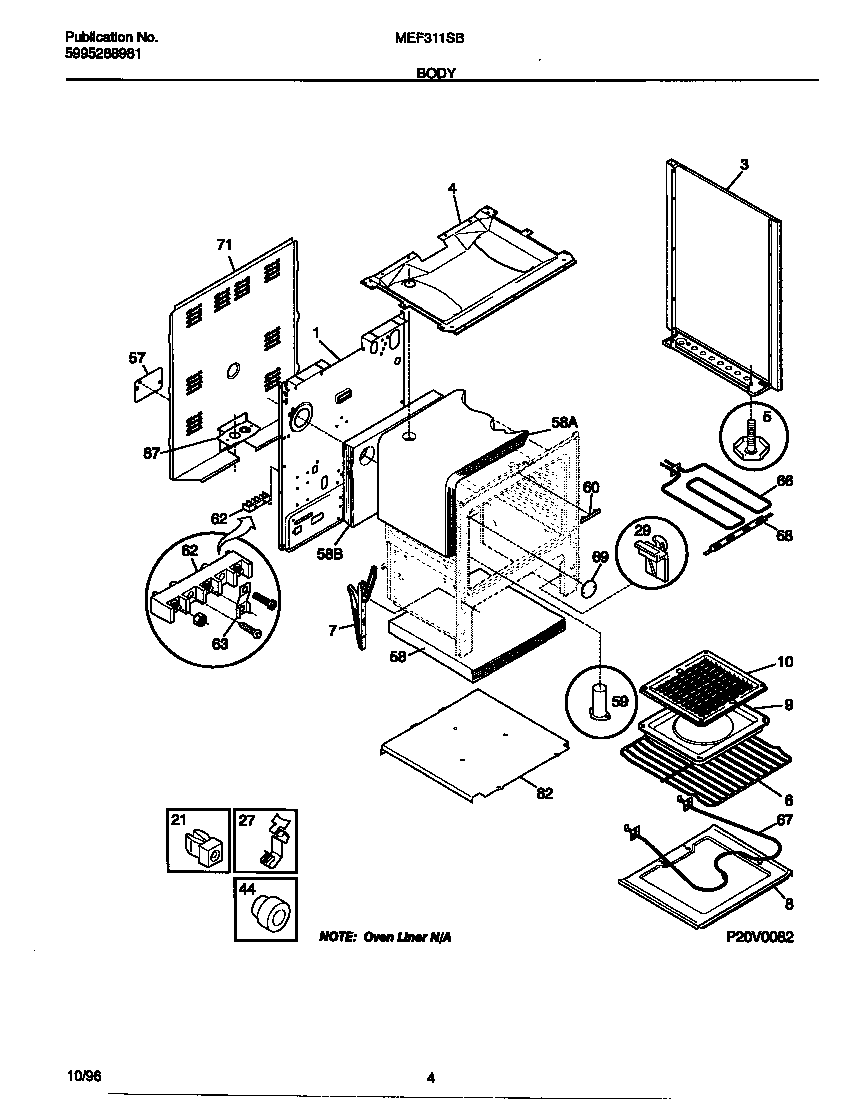

MEF311SBWF 03 – BODY

MEF311SBWF 03 – BODY

Written by

in

MEF311SBWF 03 – BODY

Products

PositionProduct
*17045Screw,cup pt ,8-18 x 0.375 ,chrome
*17046WCI 316073400
*17043WCI 3051367
*17048Wiring Harness,main
*17042WCI 3131570
*170443203550 Frigidaire Oven Plug
*17047316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081028
3WCI 316081029
4WCI 5303271756
5BSCREW-LEVELING
5ENUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5D316116000 Frigidaire Screw
5CWCI 3934058
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
