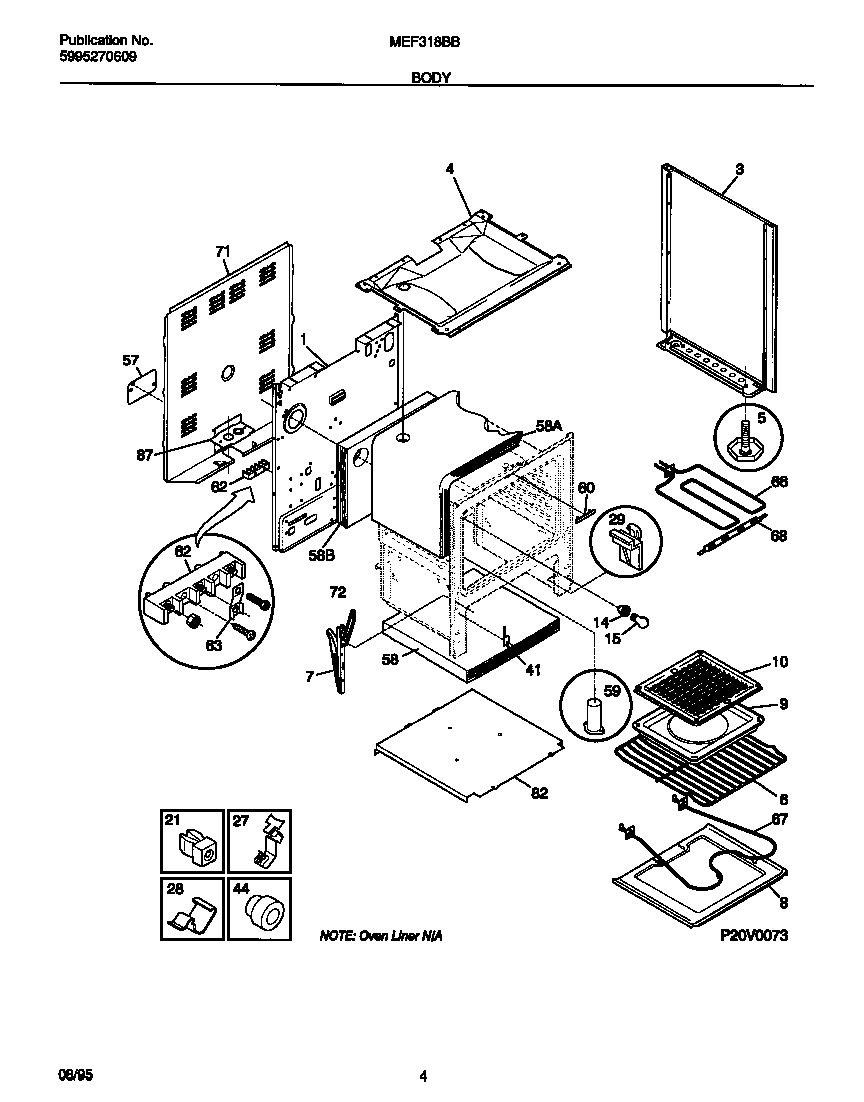

MEF318BBDB 03 – BODY

MEF318BBDB 03 – BODY

Written by

in

MEF318BBDB 03 – BODY

Products

PositionProduct
*54406WCI 5303281584
*54408WCI 316001360
*54405316205500 Frigidaire Oven Nut
*544043203550 Frigidaire Oven Plug
*54407BUMPER, COOKTOP (4)
1WCI 316063701
3AWCI 316081007
3WCI 316081006
4WCI 5303271756
5SCREW-LEVELING
5B316116000 Frigidaire Screw
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AWCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
