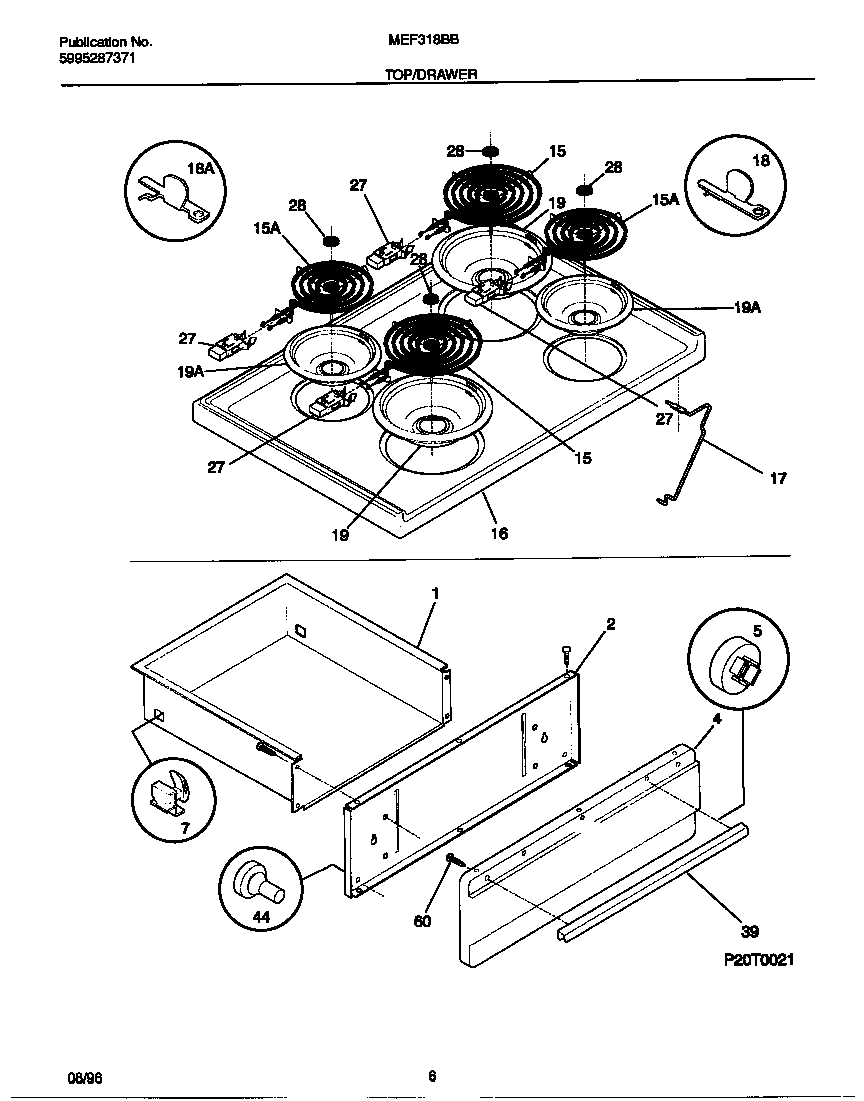

MEF318BBDD 04 – TOP/DRAWER

Products

PositionProduct
*51891316580408 Frigidaire Oven Harness
*51890WCI 5303280311
*51889Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28B5303017715 Frigidaire Medallion
28AMEDALLION, STAINLESS STEEL, SURF ELEM
39HANDLE-DRAWER, BRUSHED CHROME
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
