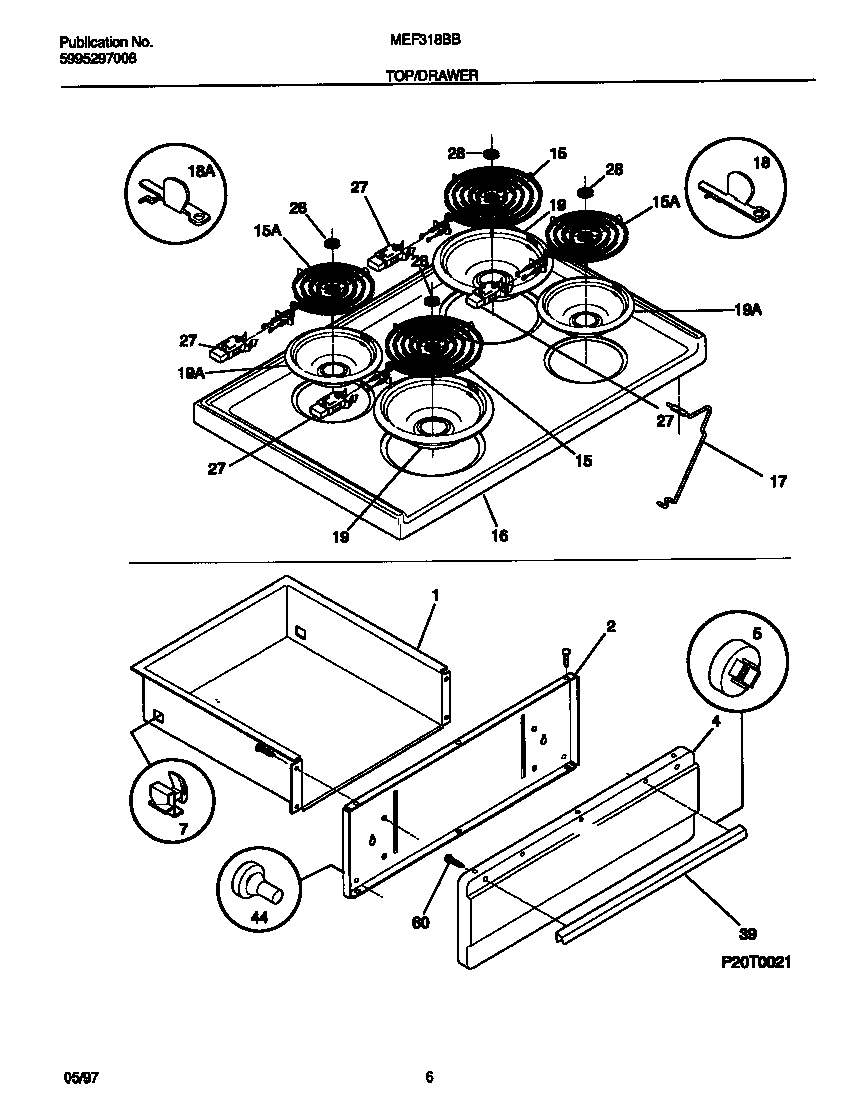

MEF318BBDF 04 – TOP/DRAWERadmin2025-04-26T11:56:45+00:00MEF318BBDF 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *37013 | 316580408 Frigidaire Oven Harness |
| *37011 | WCI 5303280311 |
| *37012 | 5308014215 Frigidaire Oven Screw |
| *37010 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *37009 | 316021105 Frigidaire Oven Screw |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | WCI 316056206 |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | 318372211 Frigidaire Oven 6" Electric Range Burner Kit |
| 15 | 316442301 Frigidaire Oven 8 Coil Element 2600W |
| 16 | WCI 3013512 |
| 17 | WCI 316066900 |
| 18 | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 19 | 316048413 Frigidaire Oven Range Chrome 8" Drip Bow |
| 19 | 316048414 Frigidaire Oven Range Chrome 6" Drip Bowl |
| 27 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 28B | 5303017715 Frigidaire Medallion |
| 28A | MEDALLION, STAINLESS STEEL, SURF ELEM |
| 39 | HANDLE-DRAWER, BRUSHED CHROME |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 60 | 316089500 Frigidaire Oven Screw |
