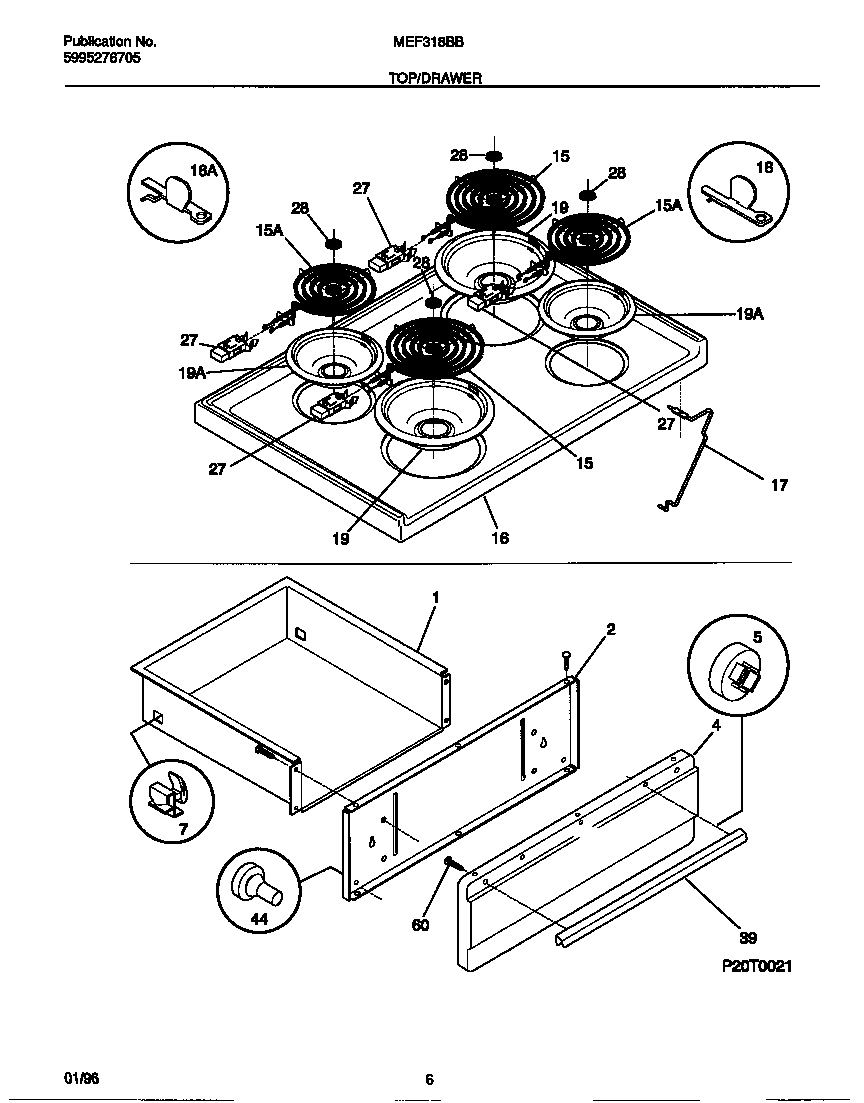

MEF318BBWC 04 – TOP/DRAWER

Products

Position	Product
*85010	316580408 Frigidaire Oven Harness
*85009	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 5303013511
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18	BRACKET-HINGE,MAIN TOP LH
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28A	MEDALLION, STAINLESS STEEL, SURF ELEM
28B	5303017715 Frigidaire Medallion
39	HANDLE-DRAWER, BRUSHED CHROME
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
