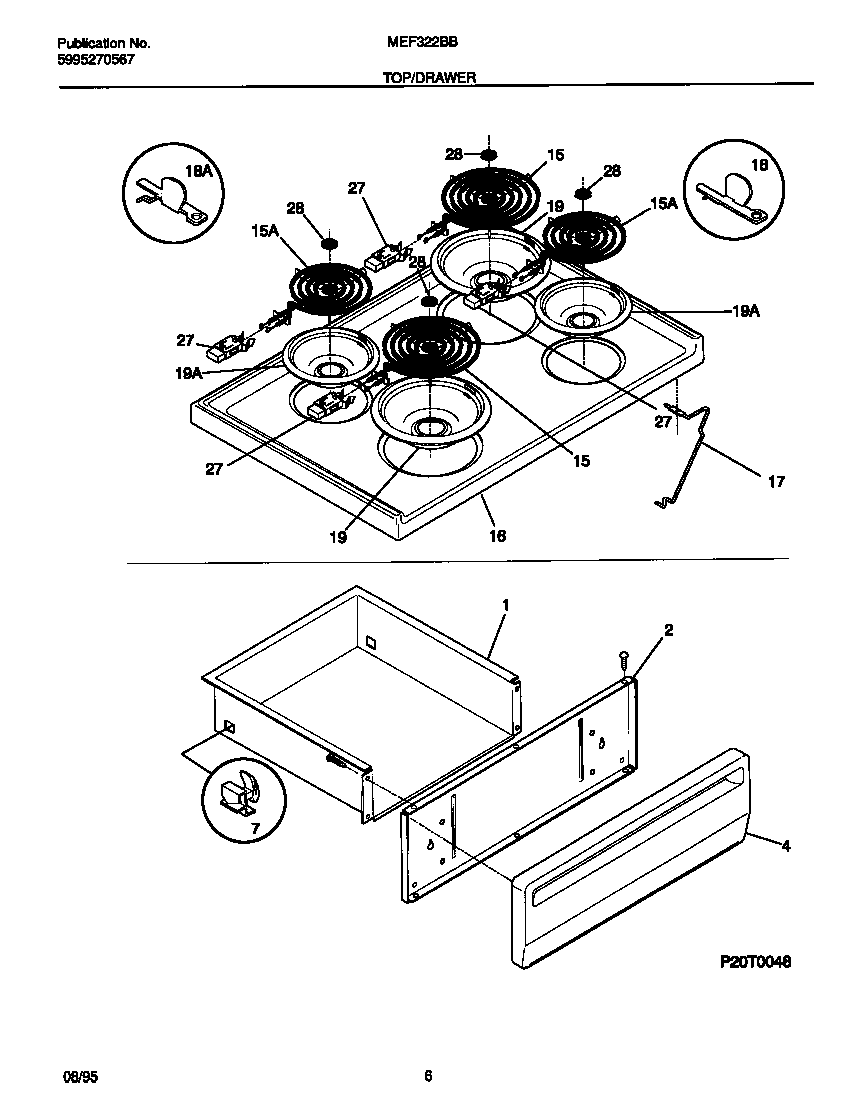

MEF322BBDD 04 – TOP/DRAWER

MEF322BBDD 04 – TOP/DRAWER

Written by

in

MEF322BBDD 04 – TOP/DRAWER

Products

PositionProduct
*94091316580408 Frigidaire Oven Harness
*94090WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3013512
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
60WCI 5303281379
