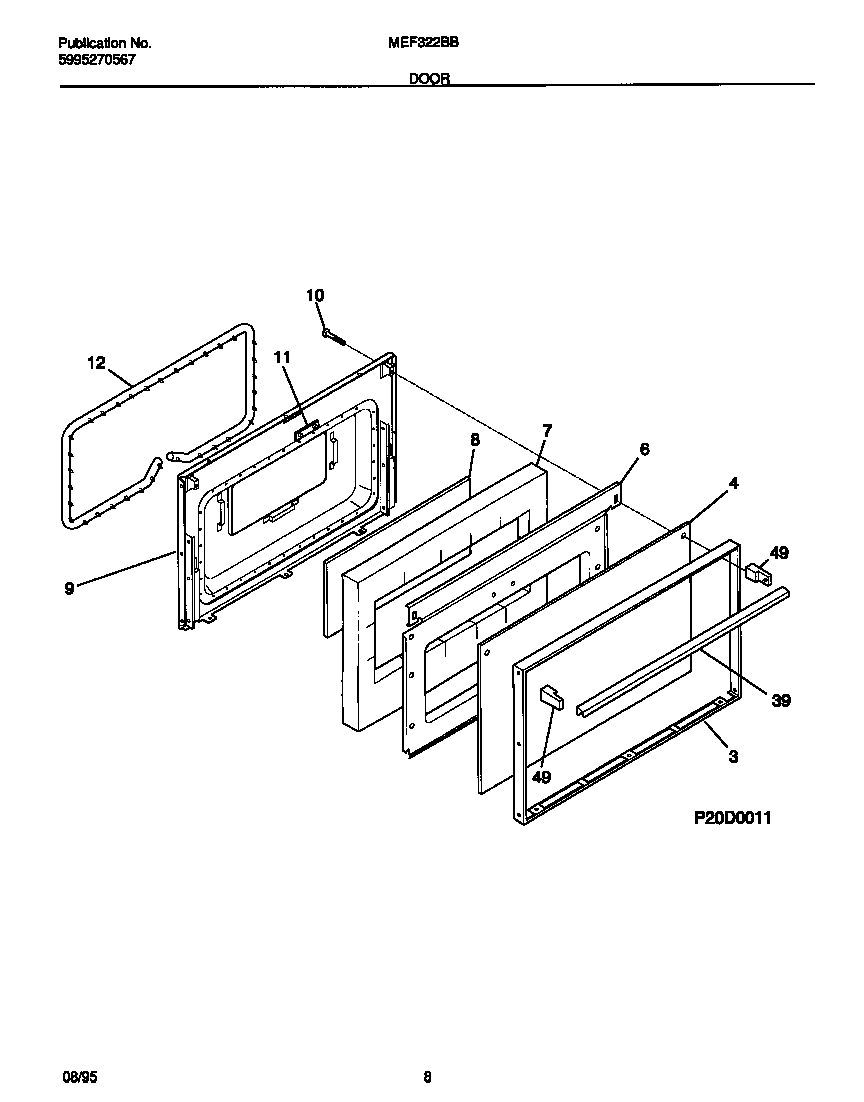

MEF322BBWD 05 – DOOR

MEF322BBWD 05 – DOOR

Written by

in

MEF322BBWD 05 – DOOR

Products

PositionProduct
*94093SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*94097WCI 5303280311
*94092WCI 316071600
*940965303271648 Frigidaire Oven Screw
*940985303285179 Frigidaire Oven Door Screw
*940945303300265 Frigidaire Oven Screw
*94095WCI 5303269859
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
6SHIELD-INSULATION
7WCI 316076401
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
