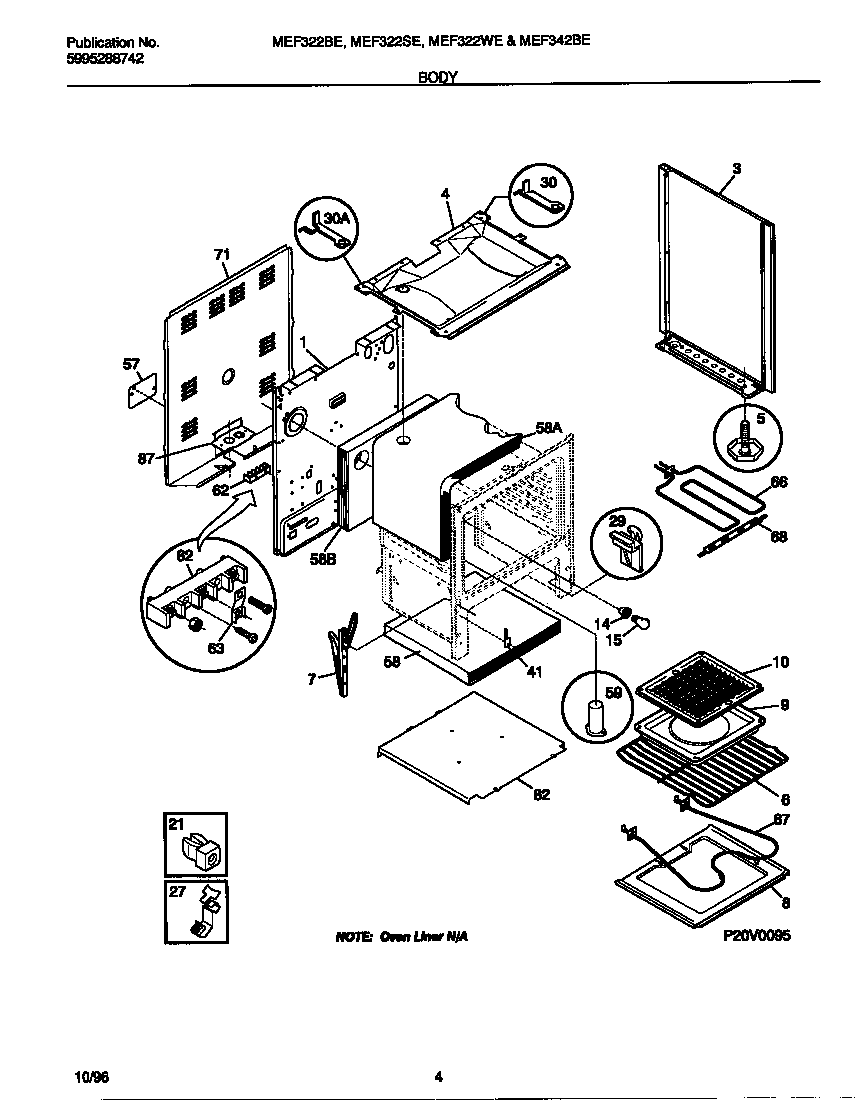

MEF322BEDB 03 – BODY

MEF322BEDB 03 – BODY

Written by

in

MEF322BEDB 03 – BODY

Products

PositionProduct
*78770WCI 316001359
*78767Screw,cup pt ,8-18 x 0.375 ,chrome
*787663203550 Frigidaire Oven Plug
*78769316205500 Frigidaire Oven Nut
*78768COVER-OVEN FRONT
1WCI 316080801
3PANEL-BODYSIDE,ALMOND ,LH
3WCI 316081030
4WCI 5303271756
5C316116000 Frigidaire Screw
5BWCI 3934058
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
57WCI 316081101
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316047707 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
