MEF322BGDC 04 – TOP/DRAWER

MEF322BGDC 04 – TOP/DRAWER

Written by

in

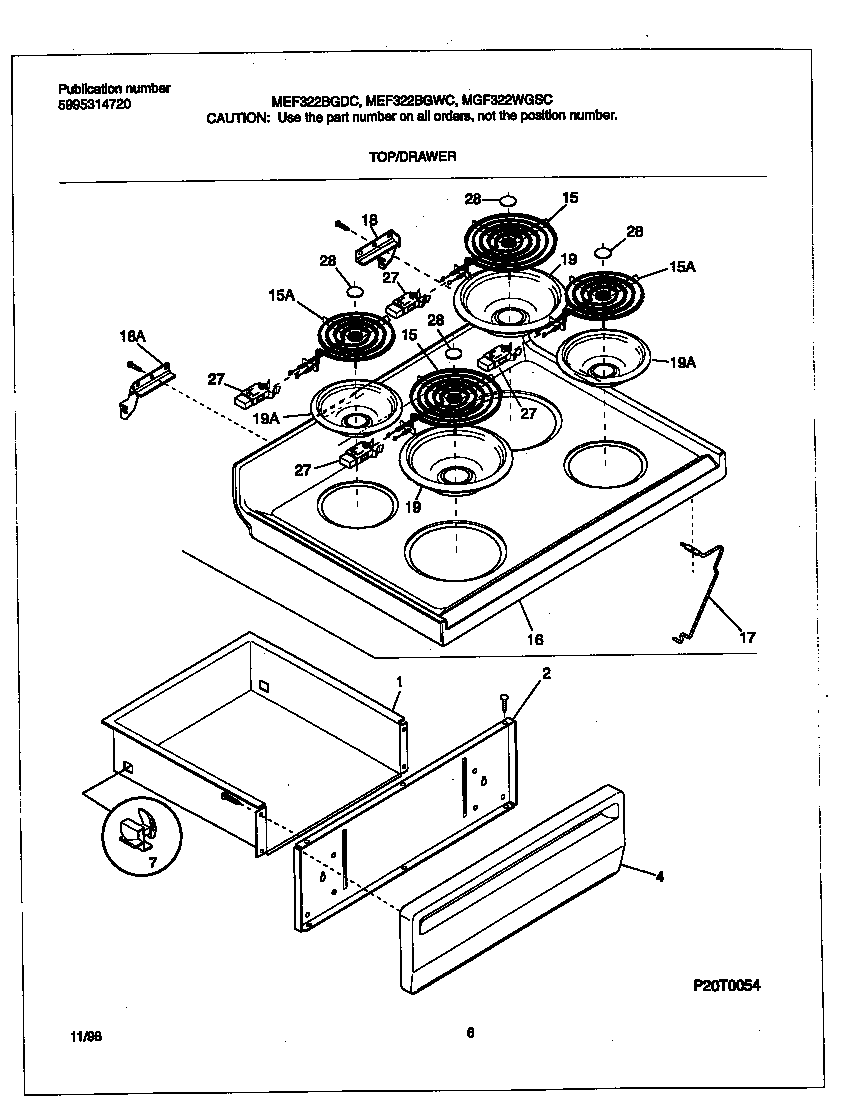

MEF322BGDC 04 – TOP/DRAWER

Products

PositionProduct
*60372316058601 Frigidaire Oven Clip
*60367WCI 316001725
*60373WCI 316089600
*60376SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*60374WCI 5303280311
*603755308014215 Frigidaire Oven Screw
*60368Screw,cup pt ,8-18 x 0.375 ,chrome
*60369316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
155308011964 Frigidaire Surface Element P1
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
