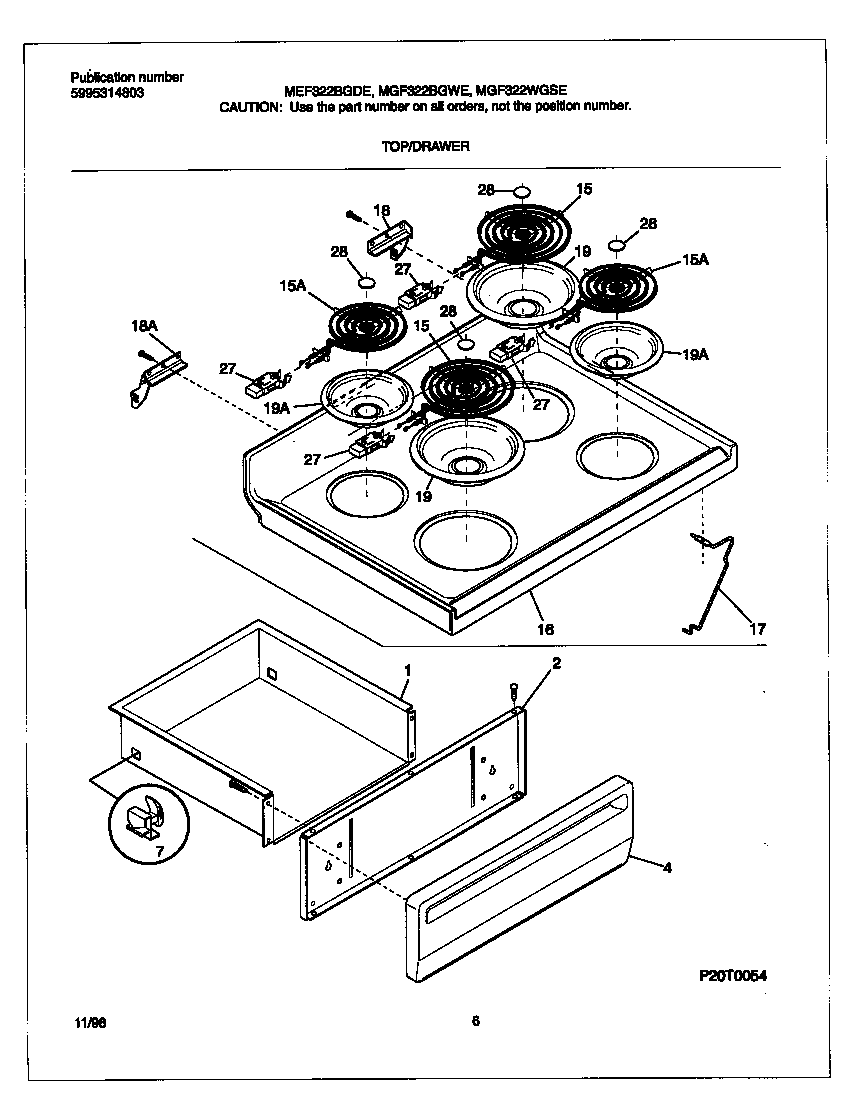

MEF322BGDE 04 – TOP/DRAWER

Products

Position	Product
*28137	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*28128	WCI 316001725
*28134	WCI 316089600
*28135	WCI 5303280311
*28136	5308014215 Frigidaire Oven Screw
*28129	Screw,cup pt ,8-18 x 0.375 ,chrome
*28130	316021109 Frigidaire Oven Screw
*28133	316058601 Frigidaire Oven Clip
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10	WCI 5303280308
15	5308011964 Frigidaire Surface Element P1
15	WCI 316115400
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
60	316021105 Frigidaire Oven Screw
