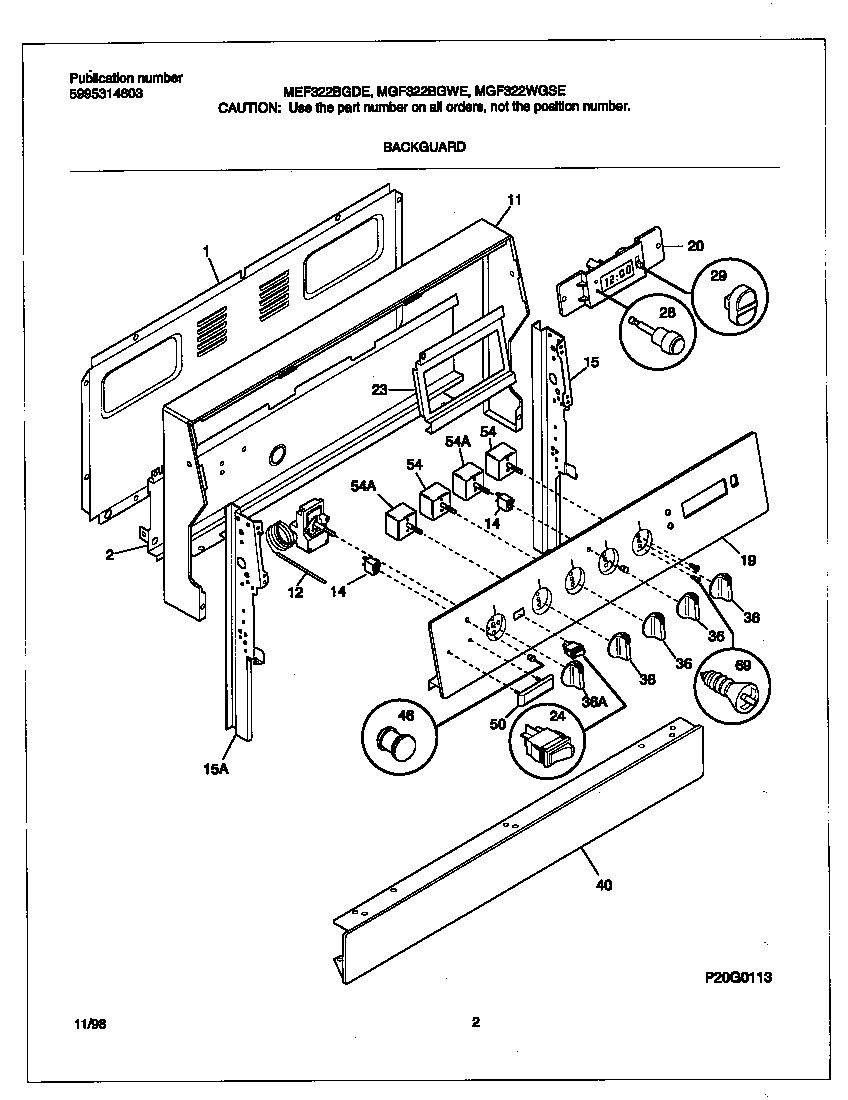

MEF322BGWE 02 – BACKGUARD

MEF322BGWE 02 – BACKGUARD

Written by

in

MEF322BGWE 02 – BACKGUARD

Products

PositionProduct
*28123316112500 Frigidaire Oven Template
*28120WCI 316002675
*28121Screw,cup pt ,8-18 x 0.375 ,chrome
*28122316021109 Frigidaire Oven Screw
1WCI 316081601
2WCI 316015907
11WCI 316061851
12WCI 316032403
14316022503 Frigidaire Light Lamp P-1
15WCI 316023108
15WCI 316023109
19WCI 316076596
20WCI 316113200
23WCI 316079002
245304527841 Frigidaire Oven Rocker Switch (Black)
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
36WCI 316109600
36316025108 Frigidaire Control Knob
40WCI 316064009
46318228310 Frigidaire Oven Lens
50WCI 316096900
545303935086 Frigidaire Oven Top Burner Switch Kit
54316436001 Frigidaire Oven Range Infinite Burner Switch
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
