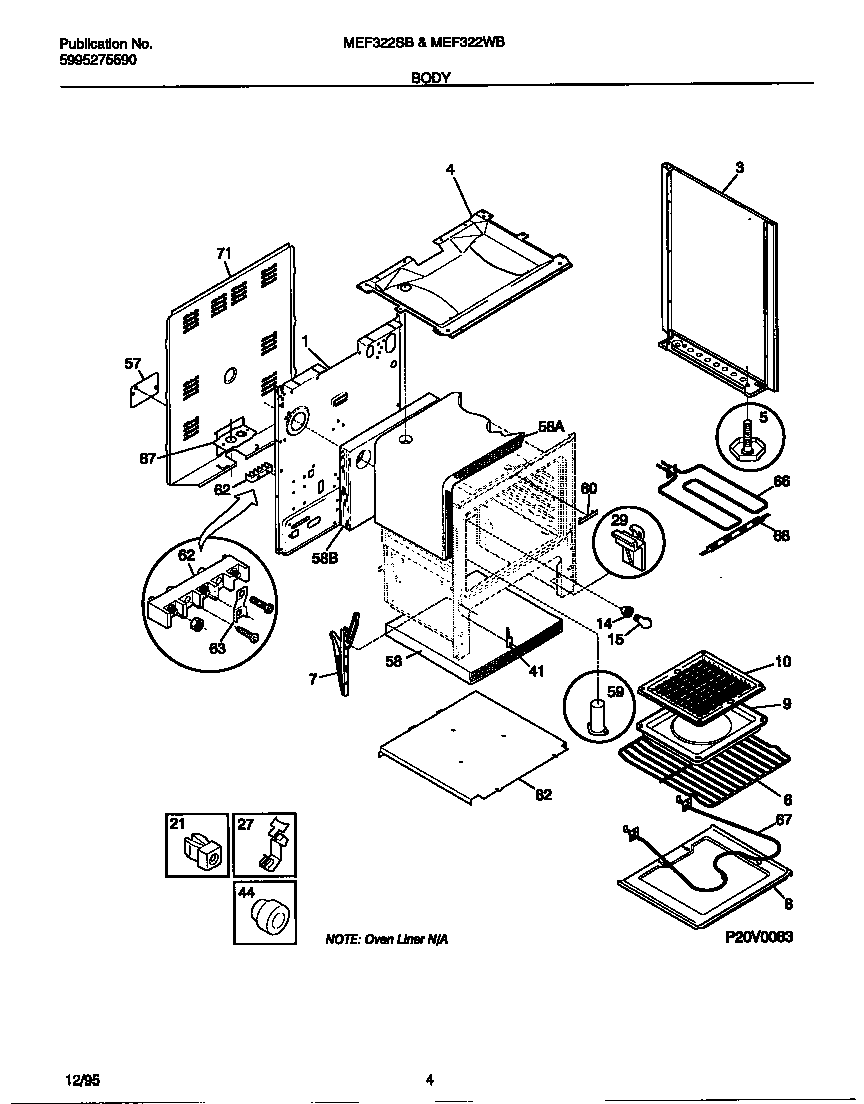

MEF322SBDE 03 – BODY

MEF322SBDE 03 – BODY

Written by

in

MEF322SBDE 03 – BODY

Products

PositionProduct
*49848WCI 5303281584
*498443051218 Frigidaire Oven Plate
*49845WCI 3051367
*49850WCI 316001182
*49847316205500 Frigidaire Oven Nut
*498463203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081006
3WCI 316081007
4WCI 5303271756
5BWCI 3934058
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
