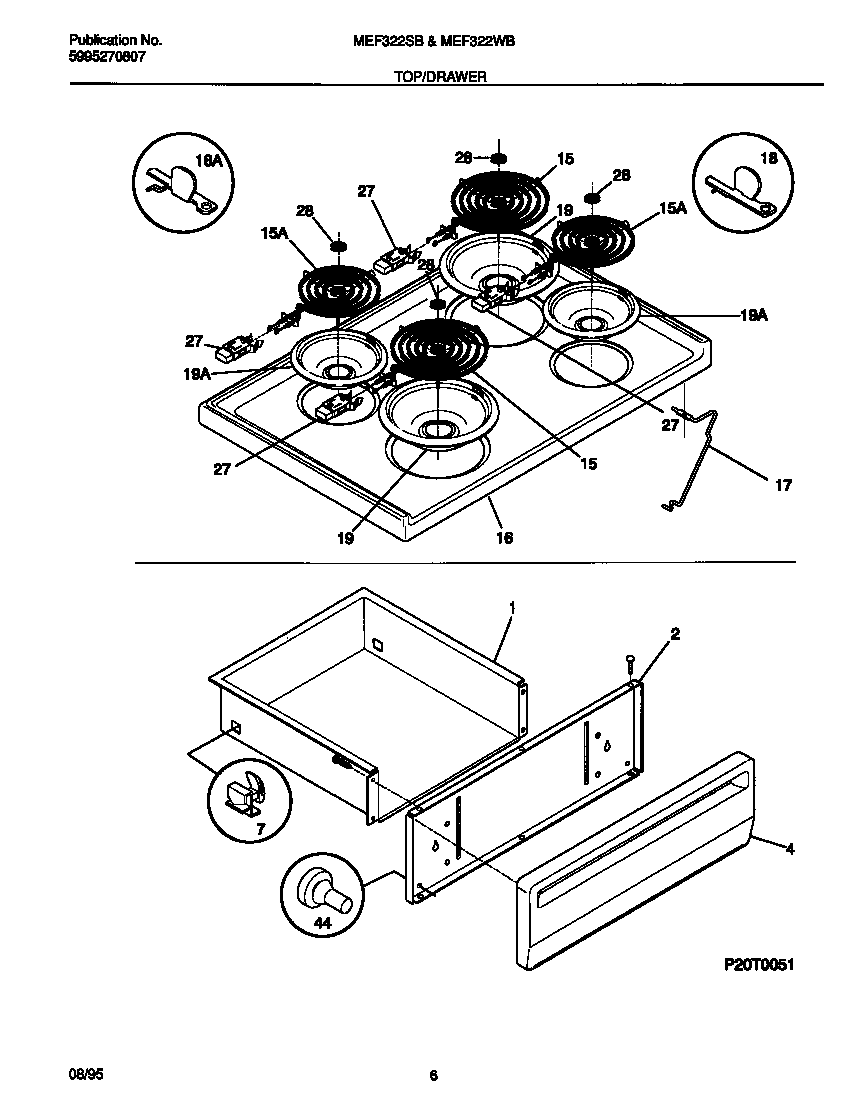

MEF322SBWD 04 – TOP/DRAWER

Products

Position	Product
*47014	316580408 Frigidaire Oven Harness
*47013	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084405
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	WCI 5303013511
17	WCI 316066900
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
44	3131903 Frigidaire Door/Drawer Bumper
