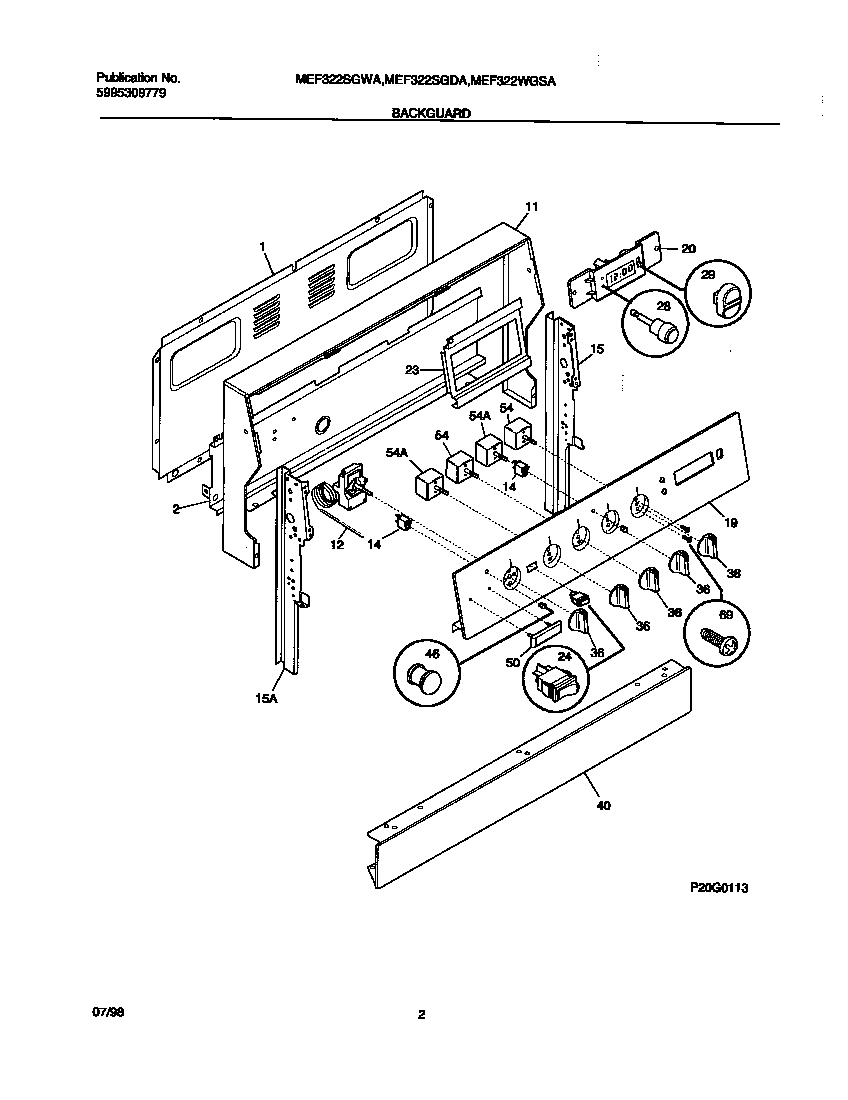

MEF322SGDA 02 – BACKGUARD

MEF322SGDA 02 – BACKGUARD

Written by

in

MEF322SGDA 02 – BACKGUARD

Products

PositionProduct
*42560Screw,cup pt ,8-18 x 0.375 ,chrome
*42561316021109 Frigidaire Oven Screw
*42562WCI 316096900
1WCI 316081601
2WCI 316015907
11WCI 316061851
12WCI 316032401
14B316022503 Frigidaire Light Lamp P-1
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15WCI 316023109
15WCI 316023108
19WCI 316076589
20WCI 316096001
23WCI 316079002
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
36316025108 Frigidaire Control Knob
36WCI 316109600
40WCI 316064009
46318228310 Frigidaire Oven Lens
54316436001 Frigidaire Oven Range Infinite Burner Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
