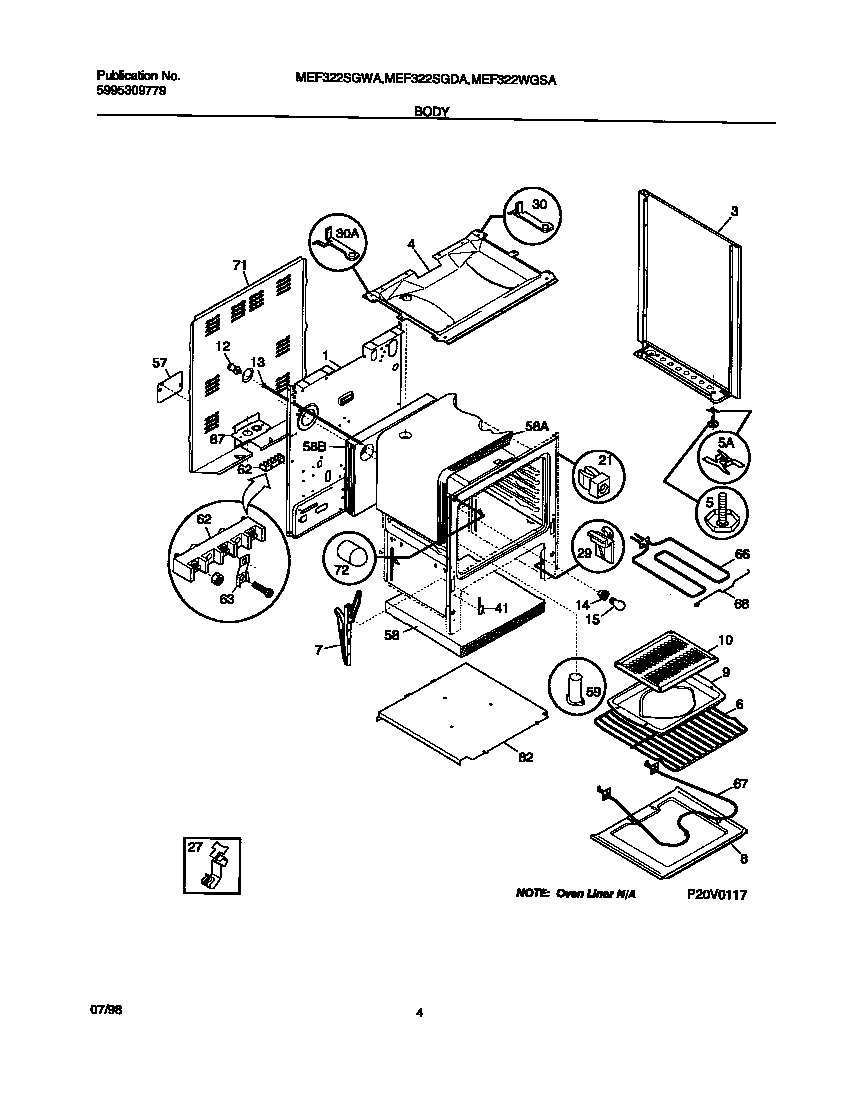

MEF322SGDA 03 – BODY

MEF322SGDA 03 – BODY

Written by

in

MEF322SGDA 03 – BODY

Products

PositionProduct
*42573COVER-LIGHT/SWITCH ROD
*42571WCI 316027702
*42567316116000 Frigidaire Screw
*42566WCI 3934058
*42572WCI 316026800
*42564PANEL-BODYSIDE,ALMOND ,LH
*42570316205500 Frigidaire Oven Nut
*425683203550 Frigidaire Oven Plug
*42569Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3WCI 316081030
4WCI 5303271756
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
57WCI 316081101
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
