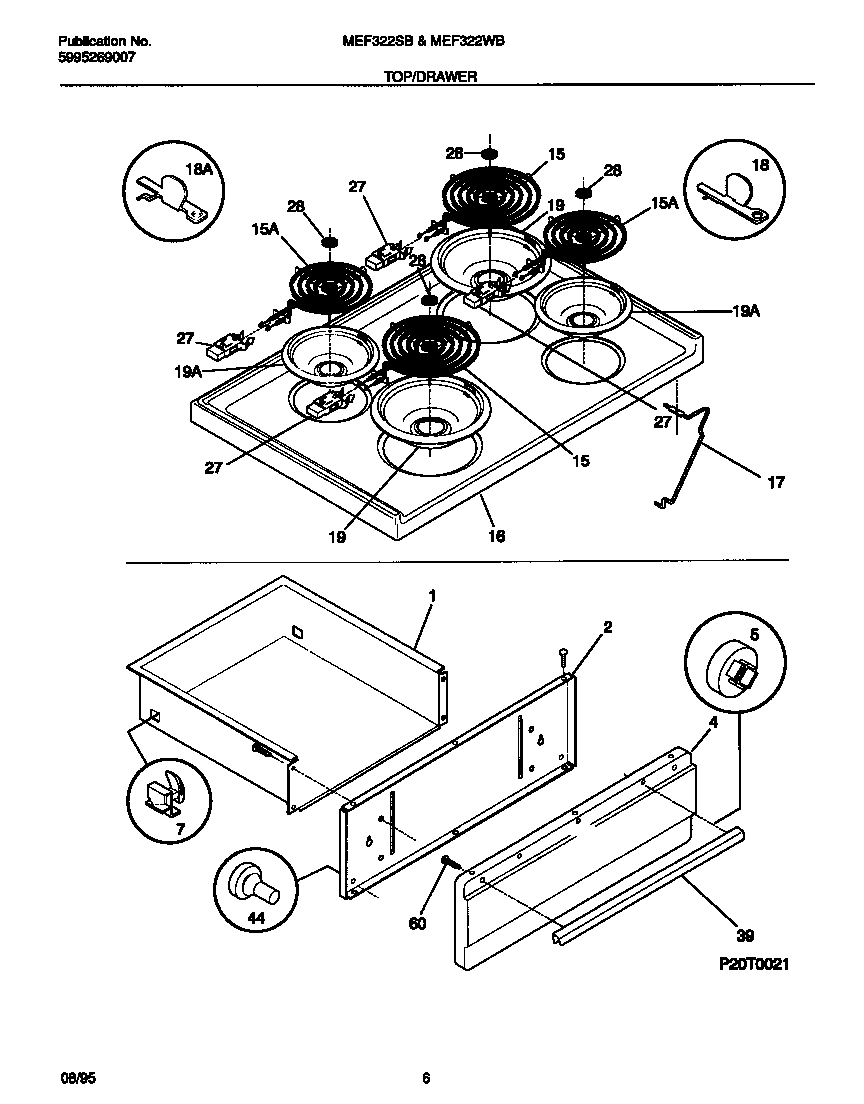

MEF322WBSC 04 – TOP/DRAWERadmin2025-04-26T09:17:34+00:00MEF322WBSC 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *16212 | WCI 5303281379 |
| *16214 | 316580408 Frigidaire Oven Harness |
| *16213 | WCI 5303281584 |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | PANEL-BROILER, WHITE |
| 4A | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | 316442300 Frigidaire Oven 2100W Coil Element 8 |
| 15A | 318372210 Frigidaire Oven Range 6" 1250W Surface Element |
| 16 | WCI 5303013511 |
| 17 | WCI 316066900 |
| 18A | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 19A | L304430992 Frigidaire 6" Drip Bowl Chrome FM |
| 19 | 316048413 Frigidaire Oven Range Chrome 8" Drip Bow |
| 27 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 28 | MEDALLION, STAINLESS STEEL, SURF ELEM |
| 39 | WCI 31619500 |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
