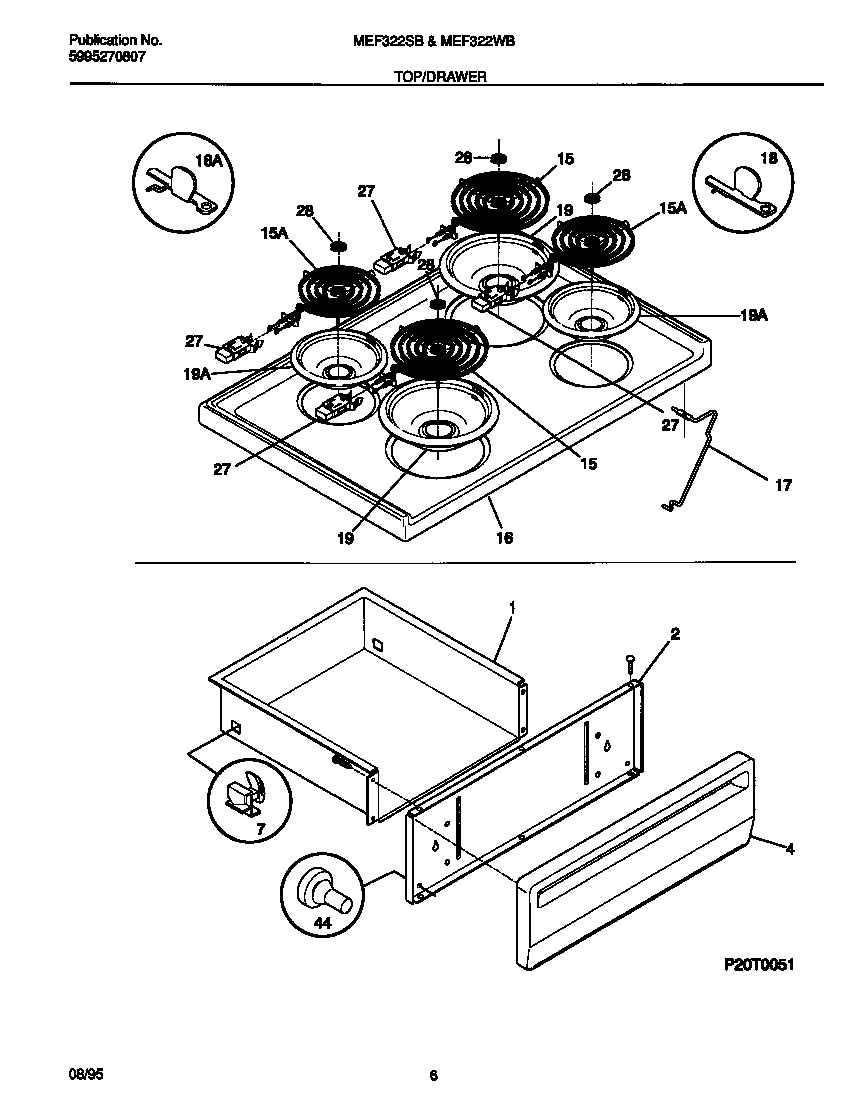

MEF322WBSD 04 – TOP/DRAWER

MEF322WBSD 04 – TOP/DRAWER

Written by

in

MEF322WBSD 04 – TOP/DRAWER

Products

PositionProduct
*47014316580408 Frigidaire Oven Harness
*47013WCI 5303281584
*47015131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 5303013511
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
