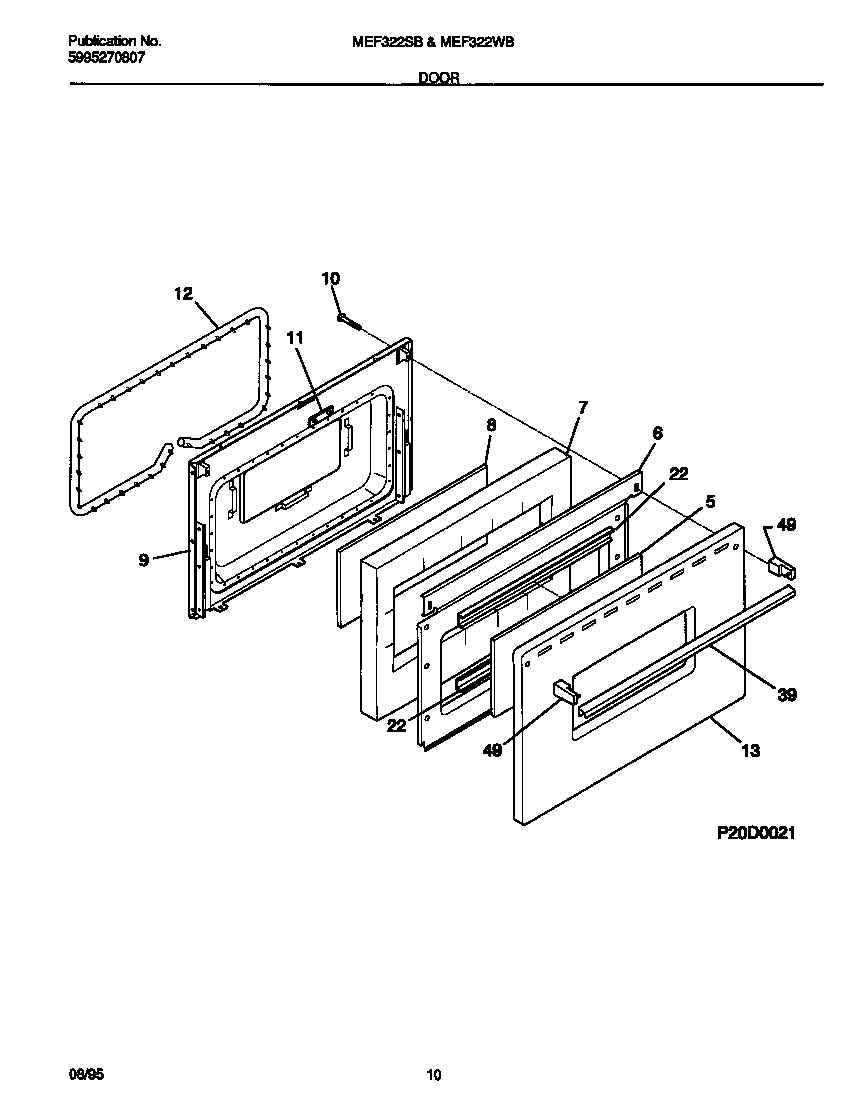

MEF322WBSD 06 – DOOR

MEF322WBSD 06 – DOOR

Written by

in

MEF322WBSD 06 – DOOR

Products

PositionProduct
*47024SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*47028WCI 5303280311
*47030131243700 Frigidaire Screw
*47023WCI 316071600
*470275303271648 Frigidaire Oven Screw
*470295303285179 Frigidaire Oven Door Screw
*470255303300265 Frigidaire Oven Screw
*47026WCI 5303269859
5WCI 316050300
6SHIELD-INSULATION
7WCI 316076401
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303202011 Frigidaire Door Seal
13PANEL, OVEN DOOR, WHITE
22Retainer,glass ,(2) ,angle
39316020202 Frigidaire Door Handle Assembly
49WCI 316020101
