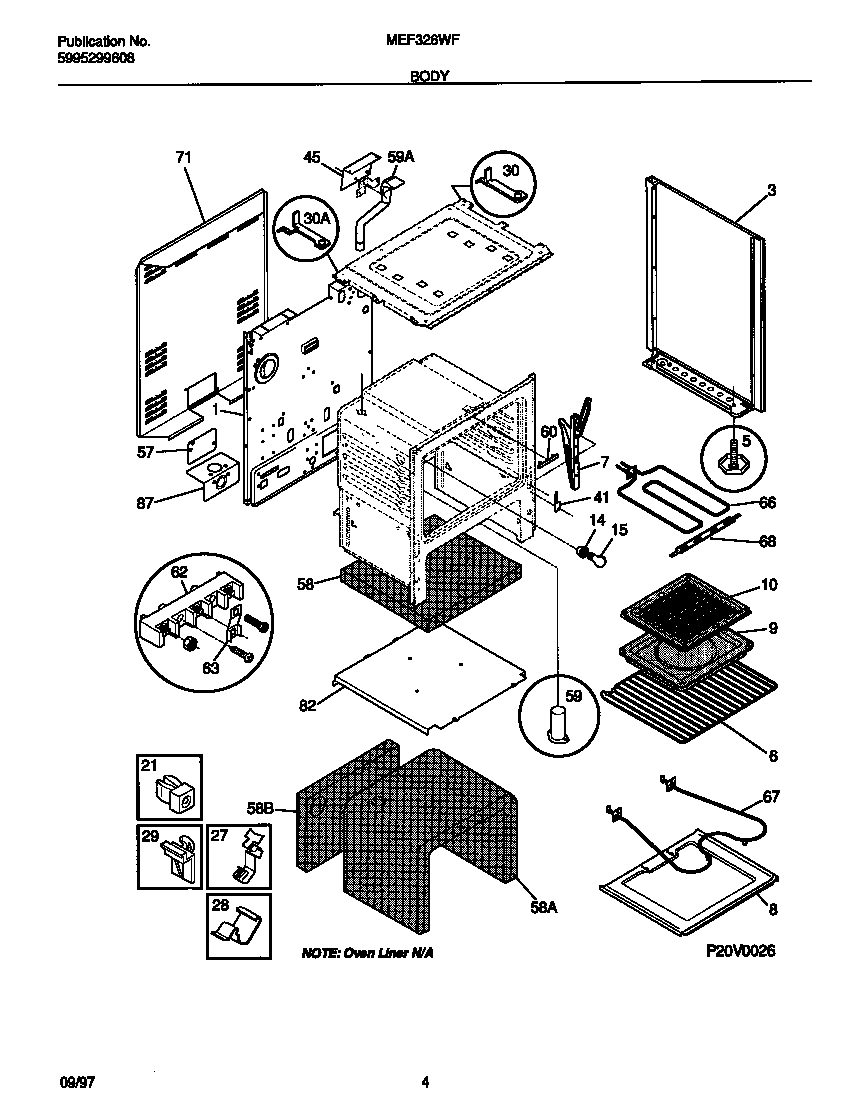

MEF326WFSA 03 – BODY

MEF326WFSA 03 – BODY

Written by

in

MEF326WFSA 03 – BODY

Products

PositionProduct
*77683Screw,cup pt ,8-18 x 0.375 ,chrome
*776823203550 Frigidaire Oven Plug
*77684316205500 Frigidaire Oven Nut
*77685WCI 316001359
1WCI 316080801
3WCI 316081028
3WCI 316081029
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
45WCI 316066100
57WCI 316081101
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
59BRACKET-MOUNTING,VENT TUBE
59WCI 316023600
59WCI 316073602
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
