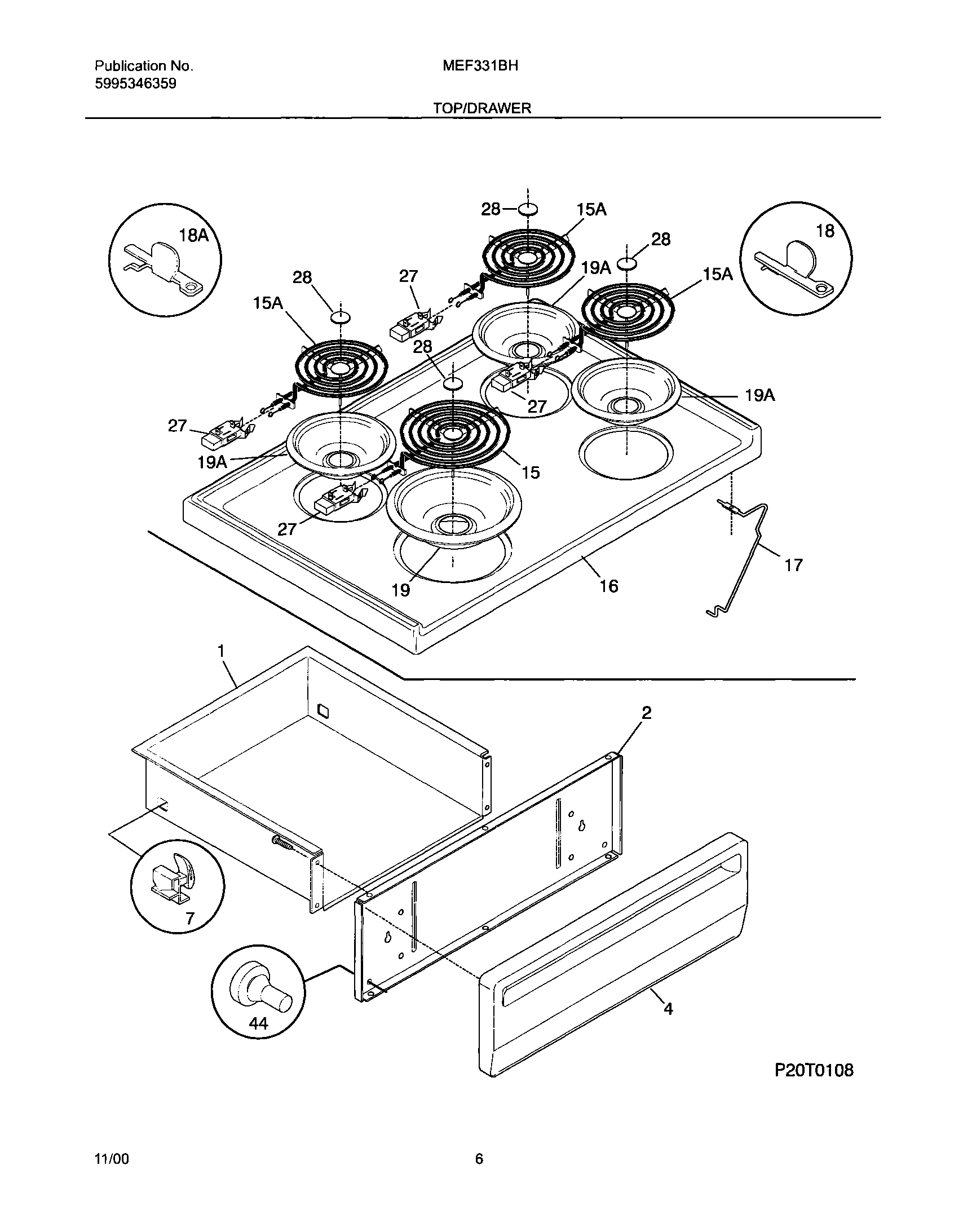

MEF331BHDB 05 – TOP/DRAWER

MEF331BHDB 05 – TOP/DRAWER

Written by

in

MEF331BHDB 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316105700
NIWCI 316001763
NIWCI 316112101
NIWCI 5303280311
NIWCI 316105701
NI316021109 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIClip,wiring harness ,green ,main top
4PNL – DRAWER (ALMD)
15A903118-9010 Frigidaire Large Surface Element Kit
15318178110 Frigidaire Oven Range 6" Surface Element
16WCI 316098104
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26AWCI 316099200
26Channel-support,element ,galv steel ,(2)
48WCI 316100200
51Light/Lamp,hot surface ind ,assy
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
