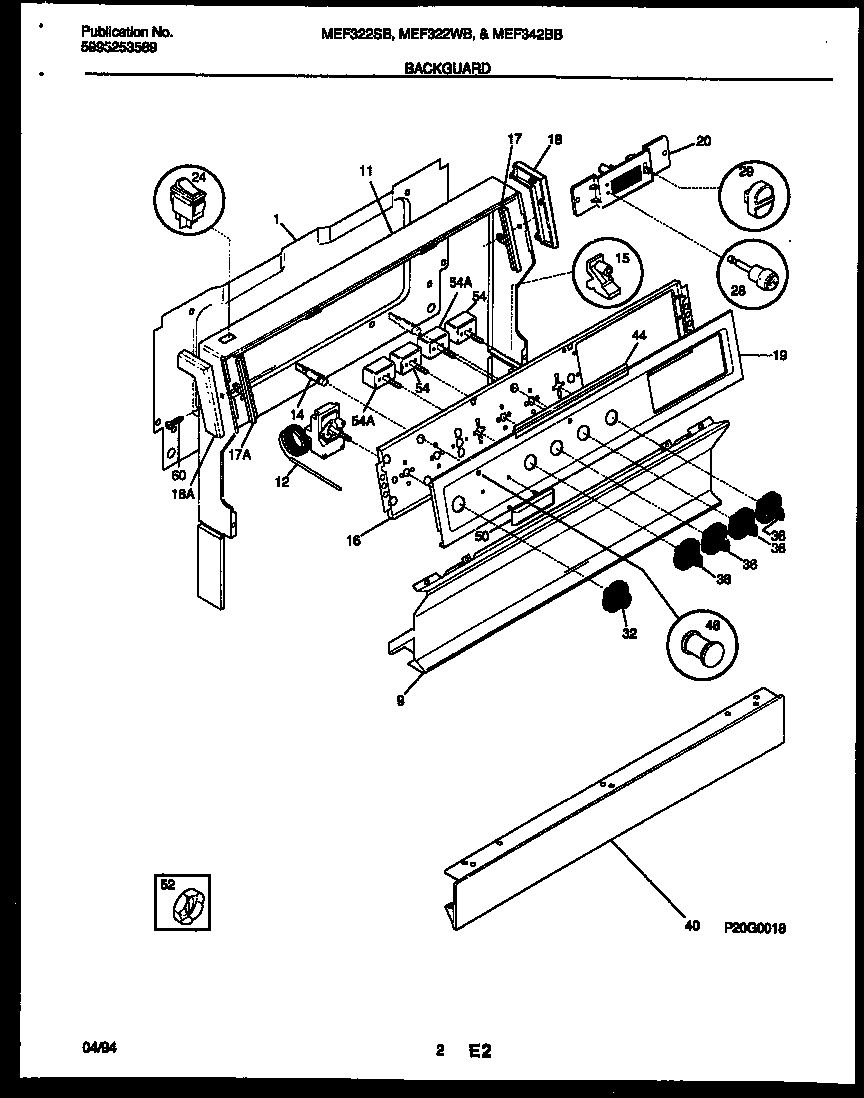

MEF342BBDA 02 – BACKGUARD

MEF342BBDA 02 – BACKGUARD

Written by

in

MEF342BBDA 02 – BACKGUARD

Products

PositionProduct
*97359RETAINER-LENS
*97359WCI 3204745
*97359WCI 5303272555
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043601
11WCI 3204764
12WCI 5303212745
14ALIGHT/LAMP, INDICATOR, BLUE, 250 V
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042602
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18AWCI 3204746
18WCI 3204747
19PANEL-CONTROL
20WCI 5303272309
245308015487 Frigidaire Switch-Oven Light
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
32WCI 316016803
36WCI 316016902
40WCI 316009222
44WCI 3131468
46JEWEL LENS-AMBER
50WCI 316052100
52NUT, TWIST
545303935086 Frigidaire Oven Top Burner Switch Kit
60SCREW-END CAP
