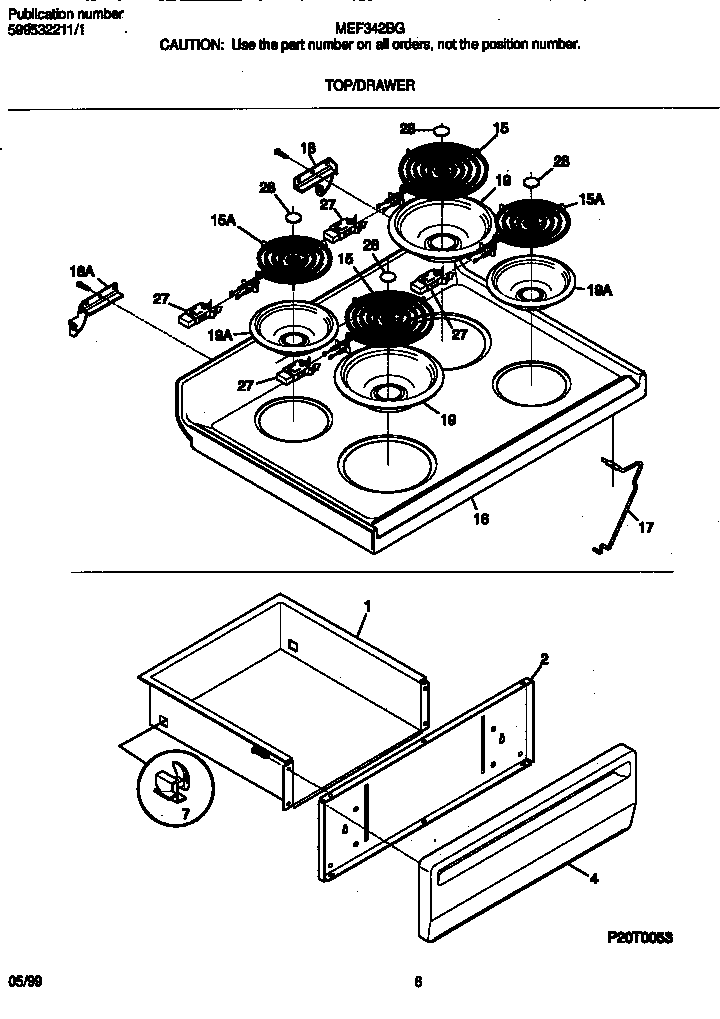

MEF342BGDC 04 – TOP/DRAWER

MEF342BGDC 04 – TOP/DRAWER

Written by

in

MEF342BGDC 04 – TOP/DRAWER

Products

PositionProduct
*14695316058601 Frigidaire Oven Clip
*14690WCI 316001725
*14696WCI 316089600
*14699SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*14697WCI 5303280311
*146985308014215 Frigidaire Oven Screw
*14691Screw,cup pt ,8-18 x 0.375 ,chrome
*14692316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
155308011964 Frigidaire Surface Element P1
15WCI 316115400
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
