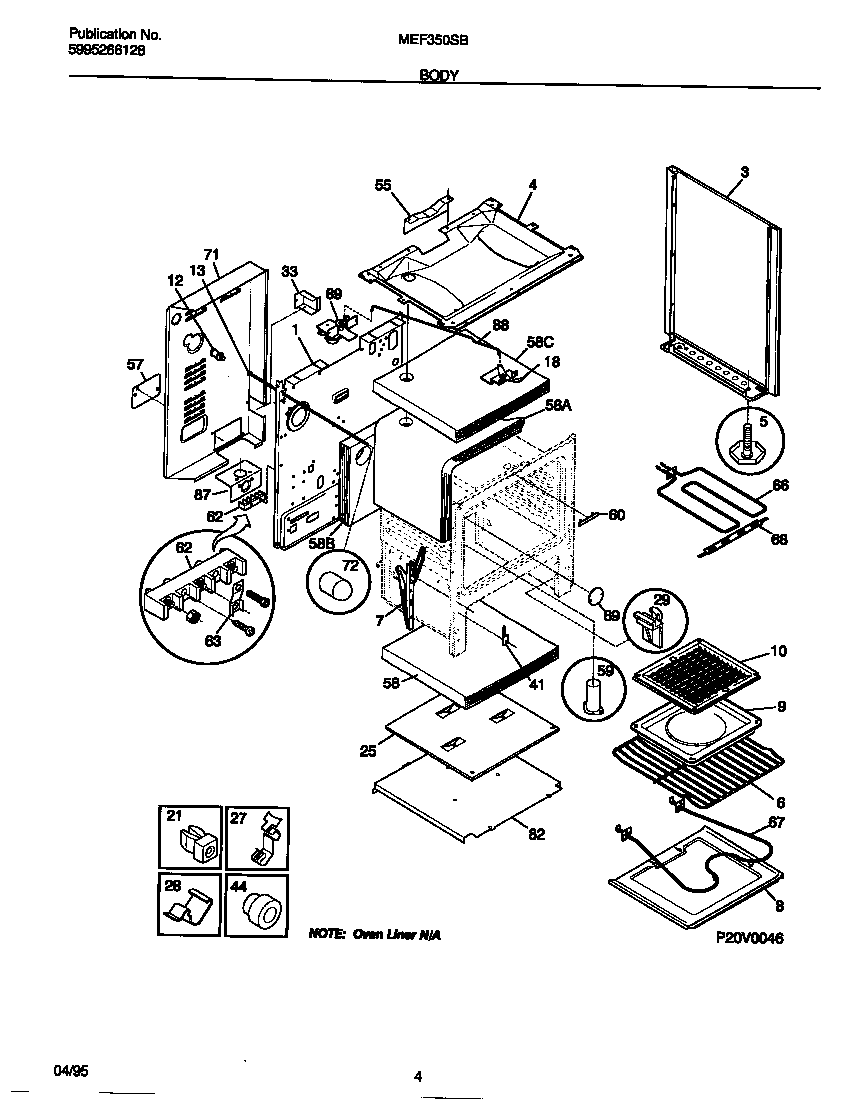

MEF350SBDA 03 – BODY

MEF350SBDA 03 – BODY

Written by

in

MEF350SBDA 03 – BODY

Products

PositionProduct
*68767WCI 5303281584
*68769TOUCH, UP PAINT, ALMOND (NI)
*68765WCI 316001155
*68768316205500 Frigidaire Oven Nut
*68766WCI 316075400
1WCI 316029405
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 5303269543
3WCI 5303269545
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271756
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5CWCI 3934058
5ASCREW-LEVELING
5BANTI-TIP KIT
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12WCI 316027700
13WCI 316026800
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58WCI 316054200
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028100
