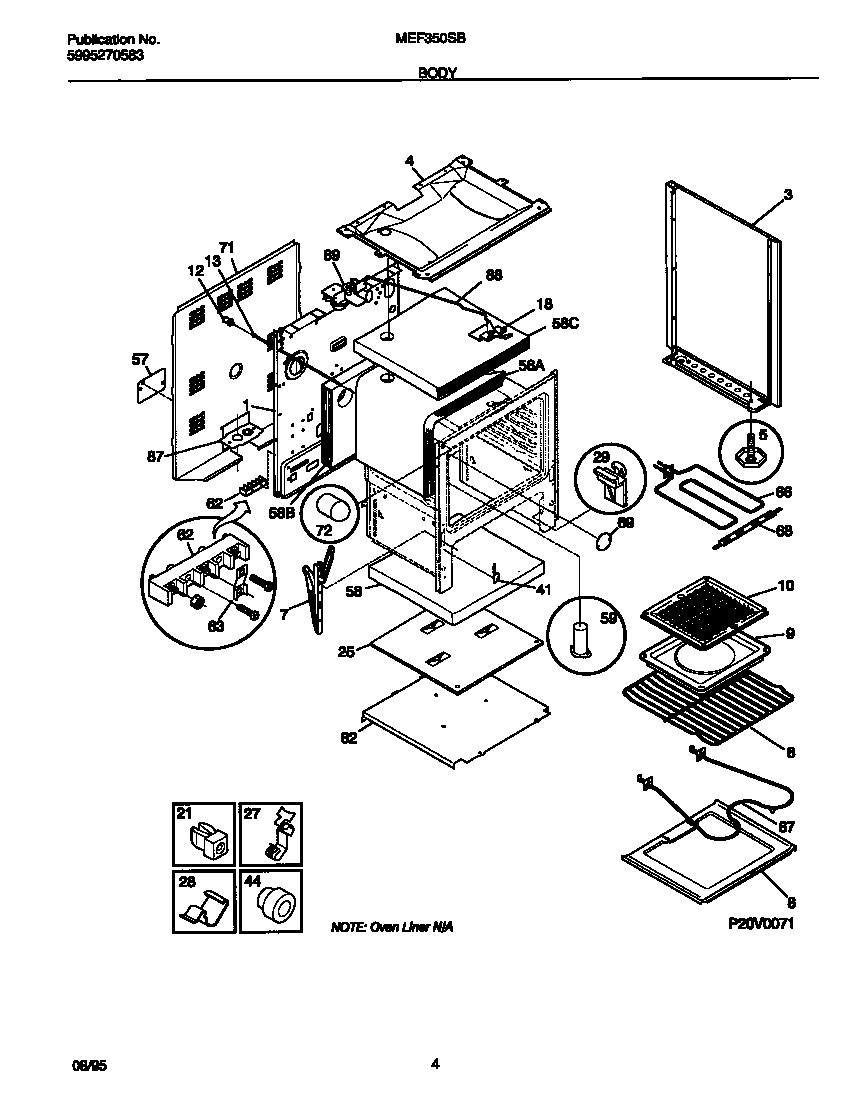

MEF350SBDD 03 – BODY

MEF350SBDD 03 – BODY

Written by

in

MEF350SBDD 03 – BODY

Products

PositionProduct
*31246WCI 5303281584
*31247WCI 316001340
*31245316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081006
3AWCI 316081007
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271756
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12WCI 316027700
13WCI 316026800
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58CINSULATION, OVEN TOP
58316403803 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028100
